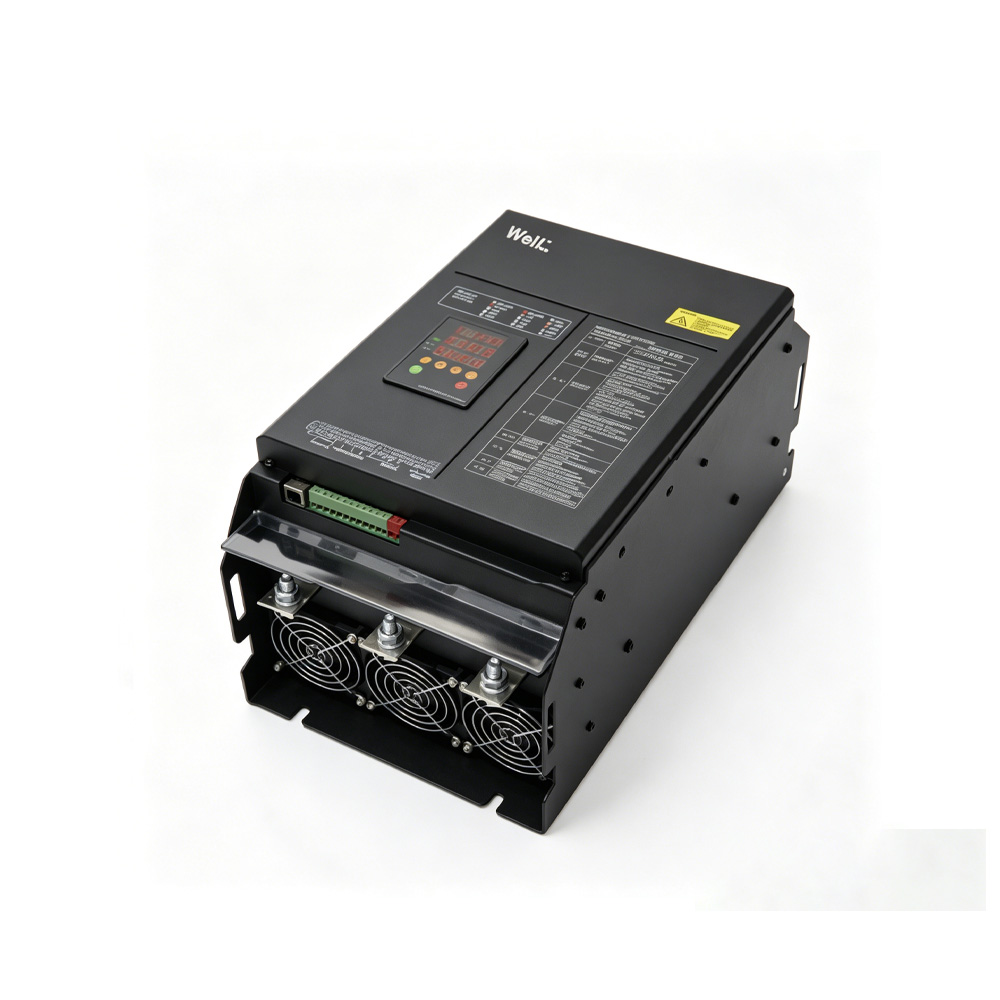

W9 Series Three-Phase Intelligent Power Regulator
Description
Product Features
- Triple-row digital display, capable of separately displaying three-phase current, voltage and power.
- Equipped with both MODBUS TCP Ethernet communication and MODBUS RTU 485 communication interfaces simultaneously.
- Single-channel universal input design; one input port is compatible with 4-20mA, 0-10V and other signals at the same time.
- Both current and voltage are displayed in true RMS values for more accurate actual measurement readings.
| Model No. | Current | Load Power (KW) | Overall Dimensions (MM) | Mounting Dimensions (MM) | Weight (KG) | Screw & Locking Torque | Cooling Method | |||||
| 220V Power Supply | 380V Power Supply | Length | Width | Height | Length | Width | Screw Spec | Torque | ||||
| W9-4-4-030-PT | 30A | 9.5 | 16.5 | 210 | 140 | 195 | 162 | 135 | 3.0 | M6 | 50kgfcm | Natural Cooling |
| W9-4-4-040-PT | 40A | 12.5 | 20 | 210 | 140 | 195 | 162 | 135 | 3.0 | M6 | 50kgfcm | Natural Cooling |
| W9-4-4-030-PFT | 30A | 9.5 | 16.5 | 250 | 140 | 195 | 162 | 135 | 3.5 | M6 | 50kgfcm | Forced Air Cooling |
| W9-4-4-040-PFT | 40A | 12.5 | 20 | 250 | 140 | 195 | 162 | 135 | 3.5 | M6 | 50kgfcm | Forced Air Cooling |
| W9-4-4-050-PT | 50A | 15.5 | 27 | 250 | 140 | 195 | 162 | 135 | 3.5 | M6 | 50kgfcm | Forced Air Cooling |
| W9-4-4-060-PT | 60A | 19 | 33 | 250 | 140 | 195 | 162 | 135 | 3.5 | M6 | 50kgfcm | Forced Air Cooling |
| W9-4-4-075-PT | 75A | 23.5 | 41 | 250 | 140 | 195 | 162 | 135 | 3.5 | M6 | 70kgfcm | Forced Air Cooling |
| W9-4-4-080-PT | 80A | 25.5 | 44 | 250 | 140 | 195 | 162 | 135 | 3.5 | M6 | 75kgfcm | Forced Air Cooling |
| W9-4-4-090-PT | 90A | 28.5 | 49 | 250 | 140 | 205 | 162 | 135 | 3.5 | M6 | 85kgfcm | Forced Air Cooling |
| W9-4-4-100-PT | 100A | 32 | 55 | 250 | 140 | 205 | 162 | 135 | 3.5 | M6 | 85kgfcm | Forced Air Cooling |
| W9-4-4-125-PT | 125A | 40 | 68.5 | 290 | 140 | 205 | 202 | 135 | 4.4 | M8 | 95kgfcm | Forced Air Cooling |
| W9-4-4-150-PT | 150A | 45.5 | 75 | 340 | 140 | 205 | 252 | 135 | 5.5 | M8 | 170kgfcm | Forced Air Cooling |
| W9-4-4-175-PT | 175A | 53 | 88 | 390 | 140 | 205 | 302 | 135 | 6 | M8 | 200kgfcm | Forced Air Cooling |
| W9-4-4-200-PT | 200A | 60 | 100 | 379 | 185 | 225 | 272 | 170 | 13 | M8 | 220kgfcm | Forced Air Cooling |
| W9-4-4-250-PT | 250A | 73 | 125 | 420 | 244 | 236 | 401 | 160 | 13 | M10 | 220kgfcm | Forced Air Cooling |
| W9-4-4-300-PT | 300A | 87 | 150 | 435 | 263 | 248 | 416 | 160 | 15 | M10 | 250kgfcm | Forced Air Cooling |
| W9-4-4-350-PT | 350A | 100 | 177 | 435 | 263 | 248 | 416 | 160 | 18 | M10 | 250kgfcm | Forced Air Cooling |
| W9-4-4-400-PT | 400A | 115 | 200 | 435 | 263 | 290 | 416 | 160 | 22 | M10 | 250kgfcm | Forced Air Cooling |
| W9-4-4-450-PT | 450A | 130 | 220 | 435 | 263 | 290 | 416 | 160 | 25 | M10 | 250kgfcm | Forced Air Cooling |
| W9-4-4-500-PT | 500A | 150 | 240 | 435 | 263 | 290 | 416 | 160 | 25 | M10 | 250kgfcm | Forced Air Cooling |
| W9-4-4-600-PT | 600A | 175 | 300 | 525 | 388 | 330 | 495*3 | 140*2 | 37 | M12 | 300kgfcm | Forced Air Cooling |
| W9-4-4-800-PT | 800A | 235 | 410 | 525 | 388 | 330 | 495*3 | 140*2 | 37 | M12 | 300kgfcm | Forced Air Cooling |
