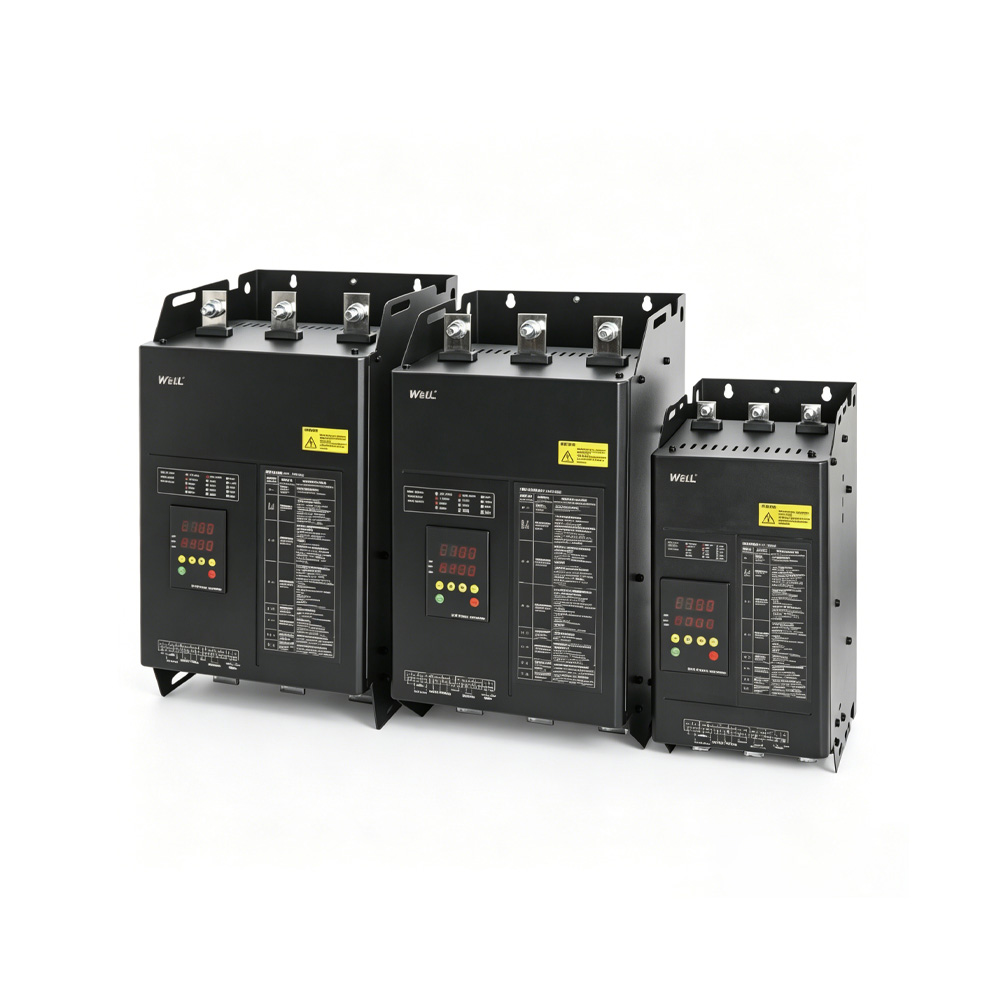

W8 Series Three-Phase High-End Power Regulator
Description
Product Features
- Full-function intelligent SCR power regulator, supporting direct switching among ordinary phase angle, constant current, constant voltage, constant power, zero-crossing, and phase angle + zero-crossing control modes.
- Multiple setpoint modes optional: analog signal, digital signal, communication setting, and direct setting via keyboard.
- Intelligent comprehensive protection functions including phase loss, over-temperature, overcurrent, load wire break, load unbalance and power frequency fault protection.
- High output linearity; the single-chip microcomputer accurately controls the output percentage, and real-time display of load current, voltage and power allows real-time monitoring of the regulator operating status.
- Built-in MODBUS RTU communication function to realize remote monitoring when connected with HMI, PLC and other devices.
- Compatible with various load types such as resistive loads, silicon carbon rod loads, transformer loads and molybdenum disilicide rod loads; the load can be connected to neutral wire.
- Up to two analog input channels with free switching between current and voltage signals.
- Parameter storage function after on-site commissioning for customized parameter configuration.
- One-key factory reset function to restore factory default values or preset parameters, preventing faults caused by incorrect parameter modification by field operators.
- Dual-row digital display with customizable content for both upper and lower rows; the lower digital tube can switch to display input, output, voltage, current and power by pressing keys directly.
- Detachable display panel, which can be mounted on the control cabinet panel to monitor operating status directly.
| Model No. | Rated Current (A) | Overall & Mounting Dimensions (mm) | Mounting Type | ||||
| A | B | C | D | E | |||
| W8-4-4-030-PT | 30A | 335 | 164 | 316 | 104 | 213 | Wall-mounted |
| W8-4-4-040-PT | 40A | 335 | 164 | 316 | 104 | 213 | Wall-mounted |
| W8-4-4-050-PT | 50A | 335 | 164 | 316 | 104 | 213 | Wall-mounted |
| W8-4-4-060-PT | 60A | 335 | 164 | 316 | 104 | 213 | Wall-mounted |
| W8-4-4-075-PT | 75A | 335 | 164 | 316 | 104 | 213 | Wall-mounted |
| W8-4-4-080-PT | 80A | 335 | 164 | 316 | 104 | 213 | Wall-mounted |
| W8-4-4-090-PT | 90A | 335 | 164 | 316 | 104 | 213 | Wall-mounted |
| W8-4-4-100-PT | 100A | 335 | 164 | 316 | 104 | 213 | Wall-mounted |
| W8-4-4-125-PT | 125A | 335 | 164 | 316 | 104 | 213 | Wall-mounted |
| W8-4-4-150-PT | 150A | 335 | 164 | 316 | 104 | 213 | Wall-mounted |
| W8-4-4-175-PT | 175A | 335 | 164 | 316 | 104 | 213 | Wall-mounted |
| W8-4-4-200-PT | 200A | 420 | 244 | 401 | 160 | 236 | Wall-mounted |
| W8-4-4-225-PT | 225A | 420 | 244 | 401 | 160 | 236 | Wall-mounted |
| W8-4-4-250-PT | 250A | 420 | 244 | 401 | 160 | 236 | Wall-mounted |
| W8-4-4-300-PT | 300A | 435 | 263 | 416 | 160 | 248 | Wall-mounted |
| W8-4-4-350-PT | 350A | 435 | 263 | 416 | 160 | 248 | Wall-mounted |
| W8-4-4-400-PT | 400A | 435 | 263 | 416 | 160 | 248 | Wall-mounted |
| W8-4-4-450-PT | 450A | 435 | 263 | 416 | 160 | 290 | Wall-mounted |
| W8-4-4-500-PT | 500A | 435 | 263 | 416 | 160 | 290 | Wall-mounted |
| W8-4-4-600-PT | 600A | 525 | 388 | 495*3 | 140*2 | 330 | Wall-mounted |
| W8-4-4-800-PT | 800A | 525 | 388 | 495*3 | 140*2 | 330 | Wall-mounted |
Technical Specification Sheet
| Category | Item | Parameter |
| Input | Main Circuit Power Supply | Three-phase AC 110-500V, 45-65Hz |
| Control Power Supply | 220V, 50Hz/60Hz | |
| Output | Output Voltage | 0~98% of main circuit input voltage |
| Output Current | 30A-450A | |
| Current Range | 18 Available Models | 30A, 40A, 50A, 60A, 70A, 80A, 90A, 100A, 125A, 150A, 175A, 200A, 225A, 250A, 300A, 350A, 400A, 450A |
| Applicable Load | Resistive Load | Nickel-chromium, iron-chromium-aluminum, far-infrared heating elements, silicon molybdenum rods, silicon carbon rods and other heating components |
| Inductive Load | Salt bath furnace, power frequency induction furnace, quenching furnace, molten glass | |
| Primary & Secondary Side of Transformer | Rectifier transformer, power regulator (pure inductance coil), primary side of electric furnace transformer; supports stepless smooth regulation of voltage, current and power | |
| Main Features | High-precision AD Conversion | 12-bit AD |
| Control Accuracy | Better than 0.05% | |
| Sampling Resolution | Higher than 0.025% | |
| Closed-loop Control Mode | Optional: open loop, constant current, constant voltage, constant power | |
| Trigger Mode | Optional: zero-crossing, phase shift, zero-crossing + phase shift | |
| Setpoint Signal | Optional: analog setpoint, keyboard digital setpoint, communication setpoint | |
| Analog Input Interface | 2-channel programmable analog input: DC 0~20mA, DC 0~10V/DC 0~5V | |
| Communication Interface | RS485, Modbus RTU standard communication protocol | |
| Soft Start & Soft Shutdown | 0~120s adjustable | |
| Protection Functions | Frequency Fault Protection | Activates when power frequency is out of range |
| Power Failure Protection | Activates upon main circuit power supply failure | |
| Over-temperature Protection | Activates when SCR temperature ＞85℃ | |
| Overcurrent Protection | Activates when output current ≥ 2 times the set value | |
| Phase Loss Protection | Activates when main circuit input power loses phase | |
| Load Wire Break Protection | Activates when load current ＜ threshold current setting | |
| Operating Environment | Application Site | Indoor, avoid direct sunlight; free of dust, corrosive gas, flammable gas, oil mist, water vapor, dripping water and salt spray |
| Altitude | Below 1000m; derated use above 1000m | |
| Ambient Temperature | -10℃~+40℃ (derated use at 40℃~50℃) | |
| Humidity | Less than 95%RH, no condensation | |
| Vibration | Less than 5.9m/s² (0.6g) |
