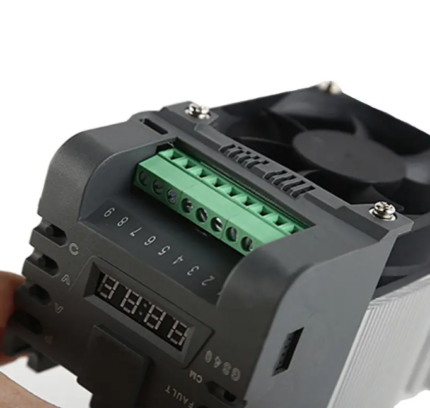

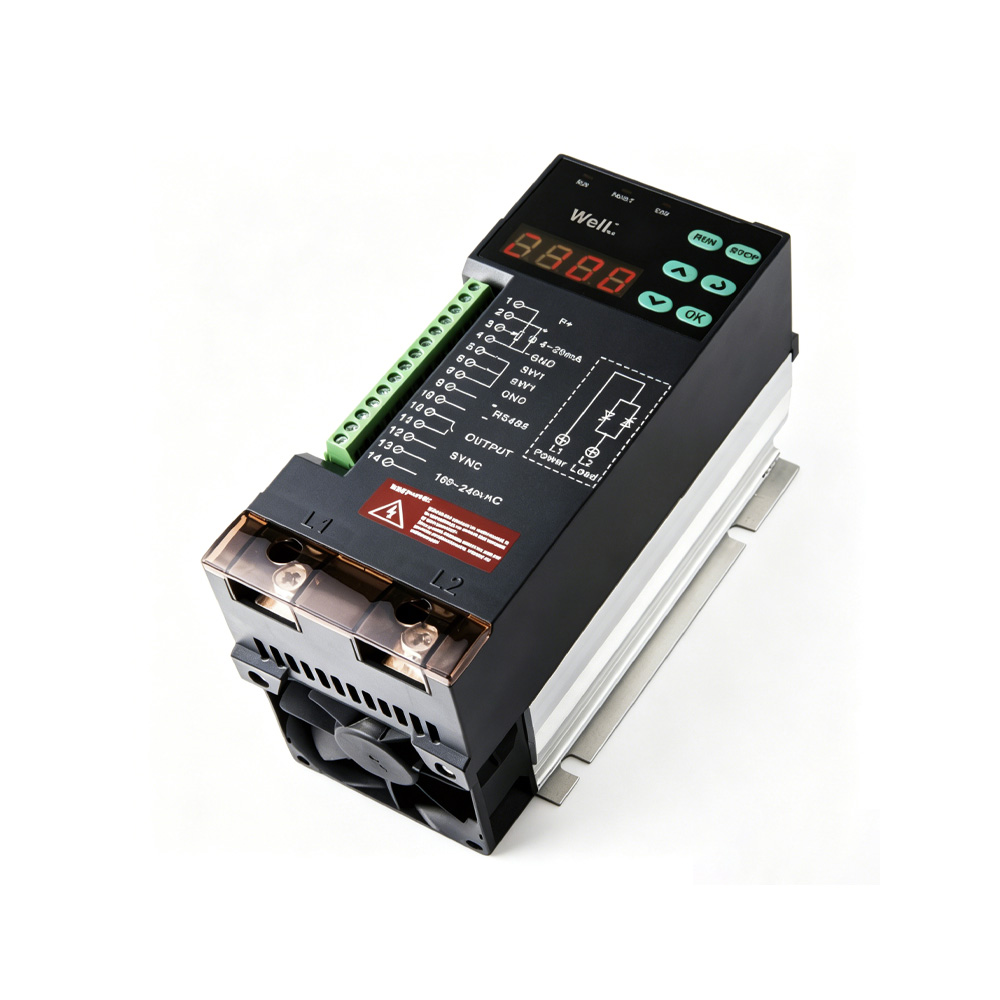

W8 Series Single-Phase Compact Power Regulator
Product Features
- The whole series adopts newly designed plastic molds with integrated molding, featuring an attractive and compact appearance, suitable for dense installation in narrow spaces.
- Adopts highly reliable MCU embedded single-chip microcomputer control technology and PID closed-loop control to achieve 100% linear output.
- Single-row digital display supports cyclic and customizable display of five parameters: input, output, voltage, current and power.
- Dual-channel signal input design, supporting direct switching of 0-5V, 0-10V, 4-20mA or potentiometer amplitude limiting signals.
- Multiple control modes are available: constant voltage, constant current, constant power, open loop, cycle wave and fixed-cycle zero-cross control.
- Multiple protection functions include phase loss, overcurrent, over-temperature, wire break protection and module breakdown alarm.
- Dual-pulse transformer trigger circuit with low DC component, especially suitable for transformer loads.
- Standard equipped with MODBUS RTU communication and PLC-dedicated communication chip for more stable and faster communication; the host computer can directly control the output value.
- Programmable output relay can be used for start signal output or fault alarm output.
- High-speed electronic protection device accurately controls output current and cuts off output within 10ms.
- Covers load current ranging from 30A to 150A, applicable to various electric heating scenarios.
- This product has obtained appearance patent.
Technical Specification Sheet
| Category | Item | Parameter |
| Input | Main Circuit Power Supply | Single-phase AC 110~500V, 45~65Hz |
| Control Power Supply | 220V, 50Hz/60Hz | |
| Output | Output Voltage | 0~98% of main circuit input voltage |
| Output Current | 30A~150A | |
| Applicable Load | Resistive Load | Nickel-chromium, iron-chromium-aluminum, far-infrared heating elements, silicon molybdenum rods, silicon carbon rods and other heating components |
| Inductive Load | Salt bath furnace, power frequency induction furnace, quenching furnace, molten glass | |
| Primary & Secondary Side of Transformer | Rectifier transformer, power regulator (pure inductance coil), primary side of electric furnace transformer | |
| Main Features | High-precision AD Conversion | 12-bit AD, stepless smooth regulation of voltage, current and power |
| Control Accuracy | Better than 0.05% | |
| Sampling Resolution | Higher than 0.025% | |
| Closed-loop Control Mode | Optional: open loop, constant current, constant voltage, constant power | |
| Trigger Mode | Optional: zero-crossing, phase shift, zero-crossing + phase shift | |
| Setpoint Signal | Optional: analog setpoint, keyboard digital setpoint, communication setpoint | |
| Analog Input Interface | 2-channel analog input: DC 0~20mA, DC 4~20mA, DC 0~5V, DC 0~10V | |
| Communication Interface | RS485, Modbus RTU standard communication protocol | |
| Soft Start & Soft Shutdown | 0~120s adjustable | |
| Protection Functions | Power Failure Protection | Protects upon main circuit power supply failure |
| Over-temperature Protection | Activates when SCR temperature ＞85℃ | |
| Overcurrent Protection | Activates when output current ≥ set multiple | |
| Phase Loss Protection | Activates when main circuit input power loses phase | |
| Load Wire Break Protection | Activates when load current ＜ threshold current setting | |
| Operating Environment | Application Site | Indoor, avoid direct sunlight; free of dust, corrosive gas, flammable gas, oil mist, water vapor, dripping water and salt spray |
| Altitude | Below 1000m; derated use above 1000m | |
| Ambient Temperature | -10℃~+40℃ (derated use at 40℃~50℃) | |
| Humidity | Less than 95%RH, no condensation |
Specification And Model List
| Model No. | Current | Load Power (KW) | Overall Dimensions (MM) | Mounting Dimensions (MM) | Weight (KG) | Screw & Locking Torque | Cooling Method | |||||
| 220V Power Supply | 380V Power Supply | Length | Width | Height | Length | Width | Screw Spec | Torque | ||||
| W8-1-4-030-PT | 30A | 5.2 | 9.1 | 185 | 80 | 128 | 100 | 73 | 1.2 | M6 | 40kgfcm | Forced Air Cooling |
| W8-1-4-040-PT | 40A | 7.0 | 12.1 | 185 | 80 | 128 | 100 | 73 | 1.2 | M6 | 40kgfcm | Forced Air Cooling |
| W8-1-4-050-PT | 50A | 8.8 | 15.2 | 185 | 80 | 128 | 100 | 73 | 1.2 | M6 | 40kgfcm | Forced Air Cooling |
| W8-1-4-060-PT | 60A | 10.5 | 18.2 | 185 | 80 | 128 | 100 | 73 | 1.2 | M6 | 40kgfcm | Forced Air Cooling |
| W8-1-4-075-PT | 75A | 13.2 | 22.8 | 185 | 80 | 128 | 100 | 73 | 1.2 | M6 | 40kgfcm | Forced Air Cooling |
| W8-1-4-080-PT | 80A | 14.0 | 24.3 | 185 | 80 | 128 | 100 | 73 | 1.2 | M6 | 40kgfcm | Forced Air Cooling |
| W8-1-4-090-PT | 90A | 15.8 | 27.3 | 185 | 80 | 128 | 100 | 73 | 1.2 | M6 | 40kgfcm | Forced Air Cooling |
| W8-1-4-100-PT | 100A | 17.6 | 30.4 | 185 | 80 | 128 | 100 | 73 | 1.2 | M6 | 40kgfcm | Forced Air Cooling |
| W8-1-4-125-PT | 125A | 22.0 | 38.0 | 185 | 80 | 128 | 100 | 73 | 1.2 | M6 | 40kgfcm | Forced Air Cooling |
| W8-1-4-150-PT | 150A | 26.4 | 45.6 | 185 | 80 | 128 | 100 | 73 | 1.2 | M6 | 40kgfcm | Forced Air Cooling |
Single phase thyristor power regulators support resistive and inductive loads. Some applications thyristor power regulator widely be used:
1.Holding Furnaces
2.Silicon Carbide/MoSi2 heating elements furnaces
3.Aluminium Melting Furnaces
4.Air Handling Units
5.Dehumidifiers
6.Boilers
7.Multi-zone heating for manifold moulds
8.Hot Air Generators and Hot Air Dryers
9.Paper and Printing Drying Ovens
10.Microwave dryers
11.Multi-zone Drying and Curing Ovens
12.Heat Transfer Printing Machines
13.Preheating tunnel ovens made using IR heaters
14.Plastic Pipes and Sheets extrusion
15.Metal sheets welding systems
