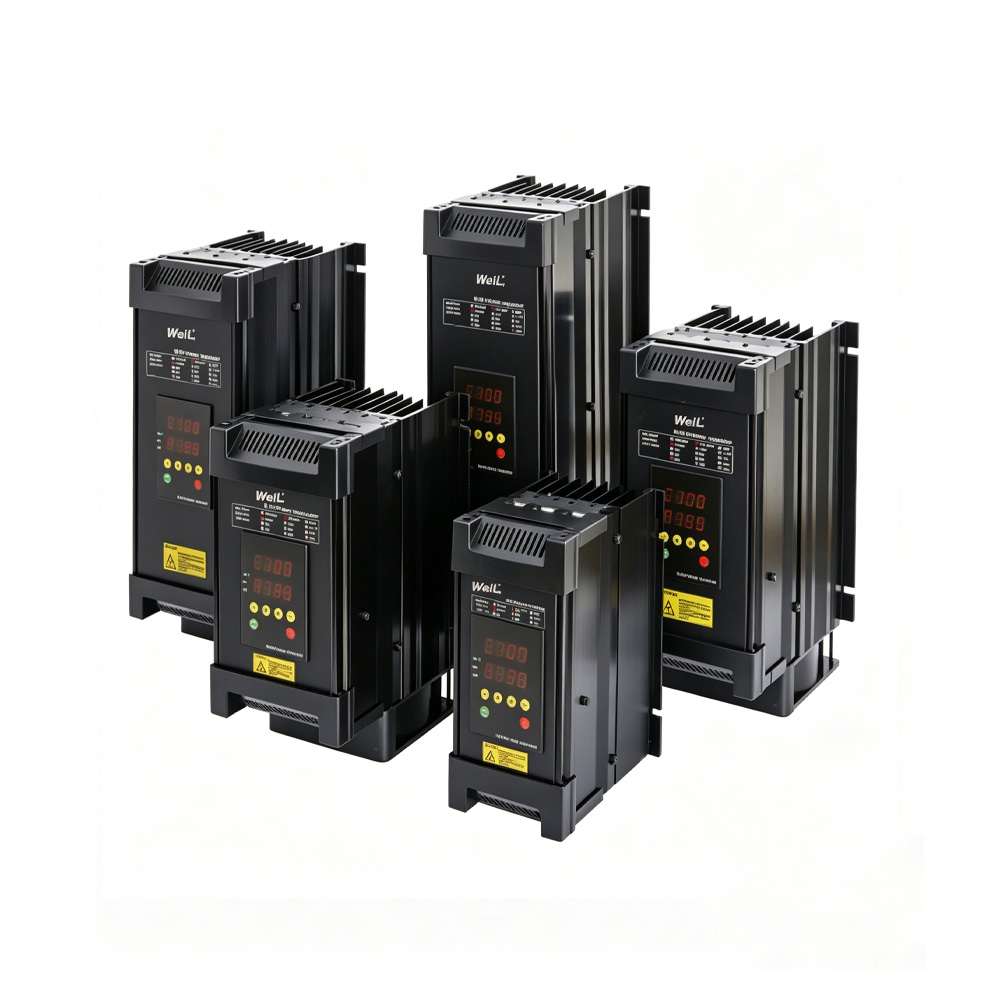

W6 Series Three-Phase Digital Power Regulator
Product Features
- Adopts advanced 32-bit control chip to drive high-power SCR and realize stepless regulation of voltage and current.
- The control circuit board uses imported chips, high-quality heat sinks and multi-channel detection to guarantee stable quality.
- Standard equipped with constant voltage and constant current output module to meet high-precision frequency conversion heating requirements.
- The constant current function is suitable for high-end loads such as silicon carbon rods, molybdenum disilicide rods, molybdenum wires and transformers.
- Supports multiple temperature adjustment gears, power regulation zero-crossing and power regulation phase-shift zero-crossing modes.
- Equipped with multiple protection functions including overcurrent (high-speed electronic protection), overheating, load wire breakage and phase loss protection.
- Comes standard with isolated RS485 MODBUS RTU communication to support remote monitoring and control.
- Dual digital tube display, resistant to high temperature, low temperature and humidity, suitable for harsh industrial environments.
- Isolation protection is adopted for both input and output interfaces with strong anti-interference performance.
- Exquisite appearance and compact size save cabinet installation space.
- Widely applied in industrial electric furnaces, drying equipment, glass processing, heat treatment, chemical industry and other industries.
| Model No. | Current | Load Power (KW) | Overall Dimensions (MM) | Mounting Dimensions (MM) | Weight (KG) | Screw & Locking Torque | Cooling Method | |||||
| 220V Power Supply | 380V Power Supply | Length | Width | Height | Length | Width | Screw Spec | Torque | ||||
| *W6-4-4-030-PT | 30A | 9.5 | 16.5 | 200 | 110 | 160 | 130 | 105 | 2.2 | M6 | 40kgfcm | Natural Cooling |
| *W6-4-4-040-PT | 40A | 12.5 | 20 | 200 | 110 | 160 | 130 | 105 | 2.5 | M6 | 40kgfcm | Natural Cooling |
| W6-4-4-050-PT | 50A | 15.5 | 27 | 250 | 140 | 195 | 162 | 135 | 3.5 | M6 | 50kgfcm | Forced Air Cooling |
| W6-4-4-060-PT | 60A | 19 | 33 | 250 | 140 | 195 | 162 | 135 | 3.5 | M6 | 50kgfcm | Forced Air Cooling |
| W6-4-4-075-PT | 75A | 23.5 | 41 | 250 | 140 | 195 | 162 | 135 | 3.5 | M6 | 70kgfcm | Forced Air Cooling |
| W6-4-4-080-PT | 80A | 25.5 | 44 | 250 | 140 | 195 | 162 | 135 | 3.5 | M6 | 75kgfcm | Forced Air Cooling |
| W6-4-4-090-PT | 90A | 28.5 | 49 | 250 | 140 | 205 | 162 | 135 | 3.5 | M6 | 85kgfcm | Forced Air Cooling |
| W6-4-4-100-PT | 100A | 32 | 55 | 250 | 140 | 205 | 162 | 135 | 3.5 | M6 | 85kgfcm | Forced Air Cooling |
| W6-4-4-125-PT | 125A | 40 | 68.5 | 290 | 140 | 205 | 202 | 135 | 4.4 | M8 | 95kgfcm | Forced Air Cooling |
| W6-4-4-150-PT | 150A | 45 | 75 | 340 | 140 | 205 | 252 | 135 | 5.5 | M8 | 170kgfcm | Forced Air Cooling |
| W6-4-4-175-PT | 175A | 53 | 88 | 390 | 140 | 205 | 252 | 135 | 6 | M8 | 200kgfcm | Forced Air Cooling |
| W6-4-4-200-PT | 200A | 60 | 100 | 379 | 185 | 225 | 272 | 170 | 13 | M8 | 220kgfcm | Forced Air Cooling |
*Note: Additional fan can be installed for 30A and 40A models.
Three phase thyristor power regulators support resistive and inductive loads. Some applications thyristor power regulator widely be used:
1.Holding Furnaces
2.Silicon Carbide/MoSi2 heating elements furnaces
3.Aluminium Melting Furnaces
4.Air Handling Units
5.Dehumidifiers
6.Boilers
7.Multi-zone heating for manifold moulds
8.Hot Air Generators and Hot Air Dryers
9.Paper and Printing Drying Ovens
10.Microwave dryers
11.Multi-zone Drying and Curing Ovens
12.Heat Transfer Printing Machines
13.Preheating tunnel ovens made using IR heaters
14.Plastic Pipes and Sheets extrusion
15.Metal sheets welding systems
1. ODM/OEM service is offered.
2. Quick order confirmation.
3. Fast delivery time.
4. Convenient payment term.
At present, the company is vigorously expanding overseas markets and global layout. We are committed to becoming one of the top ten export enterprises in China’s electrical automatic product, serving the world with high-quality products and achieving a win-win situation with more customers.
