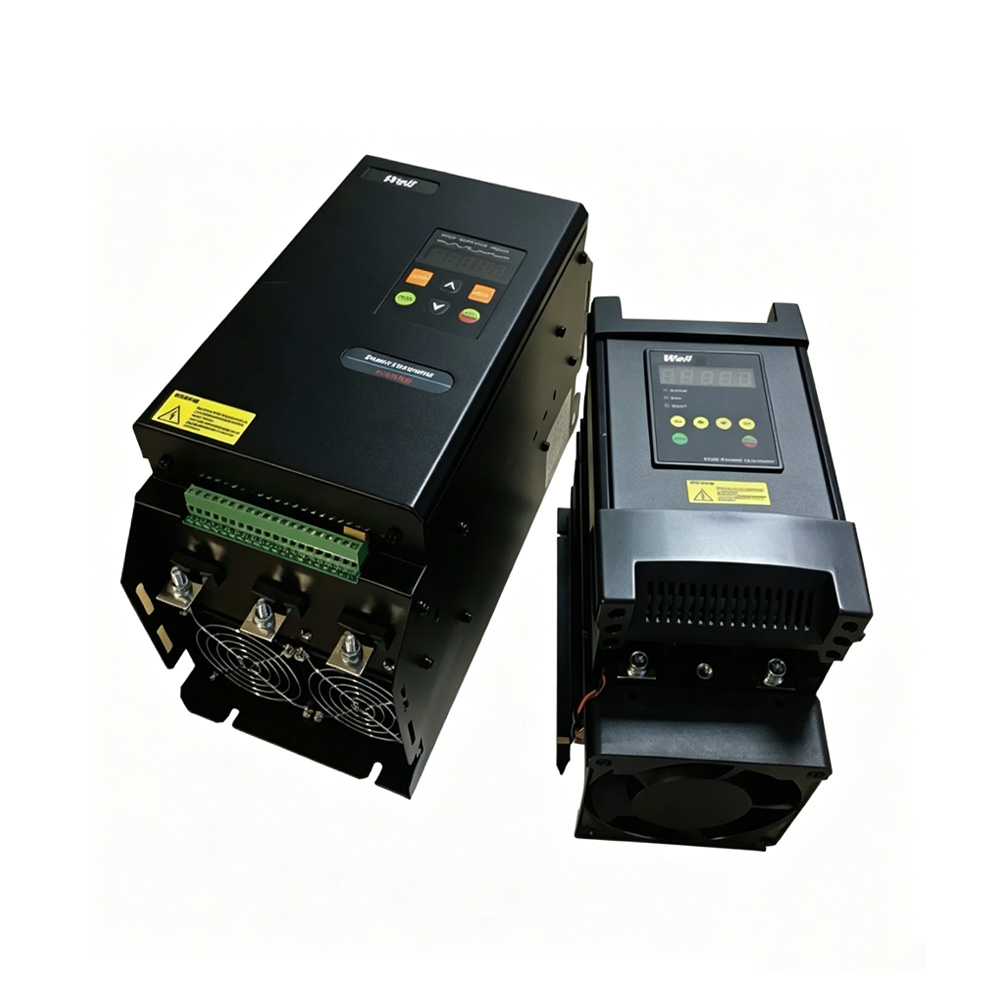

W6 Series Single-Phase Digital Power Regulator
Product Features
- Adopts dual-core MCU single-chip microcomputer control technology with built-in PID closed-loop control for 100% linear output.
- Serial and parallel digital display, customizable display of five parameters including input/output voltage, current and power.
- Dual-channel signal input design, compatible with both current and voltage signal inputs.
- Multiple control modes: constant voltage, constant current, constant power, open loop and multi-position control.
- Multiple protection functions: phase loss, overcurrent, over-temperature and wire break protection.
- Suitable for various loads in different scenarios, supports MODBUS RTU communication, and the host computer can directly control the output value.
| Model No. | Current | Load Power (KW) | Overall Dimensions (MM) | Mounting Dimensions (MM) | Weight (KG) | Screw & Locking Torque | Cooling Method | |||||
| 220V Power Supply | 380V Power Supply | Length | Width | Height | Length | Width | Screw Spec | Torque | ||||
| W6-1-4-030-PT | 30A | 5.2 | 9.1 | 200 | 113 | 170 | 130 | 105 | 2.0 | M6 | 40kgfcm | Natural Cooling |
| W6-1-4-040-PT | 40A | 7.0 | 12.1 | 200 | 113 | 170 | 130 | 105 | 2.0 | M6 | 40kgfcm | Natural Cooling |
| W6-1-4-050-PT | 50A | 8.8 | 15.2 | 225 | 113 | 170 | 130 | 105 | 2.3 | M6 | 40kgfcm | Forced Air Cooling |
| W6-1-4-060-PT | 60A | 10.5 | 18.2 | 225 | 113 | 170 | 130 | 105 | 2.3 | M6 | 40kgfcm | Forced Air Cooling |
| W6-1-4-075-PT | 75A | 13.2 | 22.8 | 225 | 113 | 170 | 130 | 105 | 2.3 | M6 | 40kgfcm | Forced Air Cooling |
| W6-1-4-080-PT | 80A | 14.0 | 24.3 | 225 | 113 | 170 | 130 | 105 | 2.3 | M6 | 40kgfcm | Forced Air Cooling |
| W6-1-4-090-PT | 90A | 15.8 | 27.3 | 225 | 113 | 170 | 130 | 105 | 2.3 | M6 | 40kgfcm | Forced Air Cooling |
| W6-1-4-100-PT | 100A | 17.6 | 30.4 | 225 | 113 | 170 | 130 | 105 | 2.3 | M6 | 40kgfcm | Forced Air Cooling |
| W6-1-4-125-PT | 125A | 22.0 | 38.0 | 270 | 113 | 170 | 160 | 105 | 3.2 | M8 | 40kgfcm | Forced Air Cooling |
| W6-1-4-150-PT | 150A | 26.4 | 45.6 | 270 | 113 | 170 | 160 | 105 | 3.2 | M8 | 40kgfcm | Forced Air Cooling |
| W6-1-4-175-PT | 175A | 30.5 | 53.2 | 270 | 113 | 170 | 160 | 105 | 3.2 | M8 | 40kgfcm | Forced Air Cooling |
| W6-1-4-200-PT | 200A | 35.2 | 60.8 | 270 | 113 | 170 | 160 | 105 | 3.2 | M8 | 40kgfcm | Forced Air Cooling |
| W6-1-4-225-PT | 225A | 39 | 65 | 335 | 164 | 213 | 316 | 104 | 12 | M8 | 250kgfcm | Forced Air Cooling |
| W6-1-4-250-PT | 250A | 42 | 70 | 335 | 164 | 213 | 316 | 104 | 14 | M8 | 250kgfcm | Forced Air Cooling |
| W6-1-4-300-PT | 300A | 52 | 86 | 335 | 164 | 213 | 316 | 104 | 16 | M8 | 250kgfcm | Forced Air Cooling |
| W6-1-4-400-PT | 400A | 70 | 120 | 335 | 164 | 213 | 316 | 104 | 20 | M8 | 250kgfcm | Forced Air Cooling |
| W6-1-4-450-PT | 450A | 79 | 135 | 435 | 263 | 248 | 416 | 160 | 25 | M10 | 250kgfcm | Forced Air Cooling |
| W6-1-4-500-PT | 500A | 88 | 150 | 435 | 263 | 248 | 416 | 160 | 25 | M10 | 250kgfcm | Forced Air Cooling |
| W6-1-4-600-PT | 600A | 100 | 180 | 435 | 263 | 248 | 416 | 160 | 25 | M10 | 250kgfcm | Forced Air Cooling |
Single phase thyristor power regulators support resistive and inductive loads. Some applications thyristor power regulator widely be used:
1.Holding Furnaces
2.Silicon Carbide/MoSi2 heating elements furnaces
3.Aluminium Melting Furnaces
4.Air Handling Units
5.Dehumidifiers
6.Boilers
7.Multi-zone heating for manifold moulds
8.Hot Air Generators and Hot Air Dryers
9.Paper and Printing Drying Ovens
10.Microwave dryers
11.Multi-zone Drying and Curing Ovens
12.Heat Transfer Printing Machines
13.Preheating tunnel ovens made using IR heaters
14.Plastic Pipes and Sheets extrusion
15.Metal sheets welding systems
