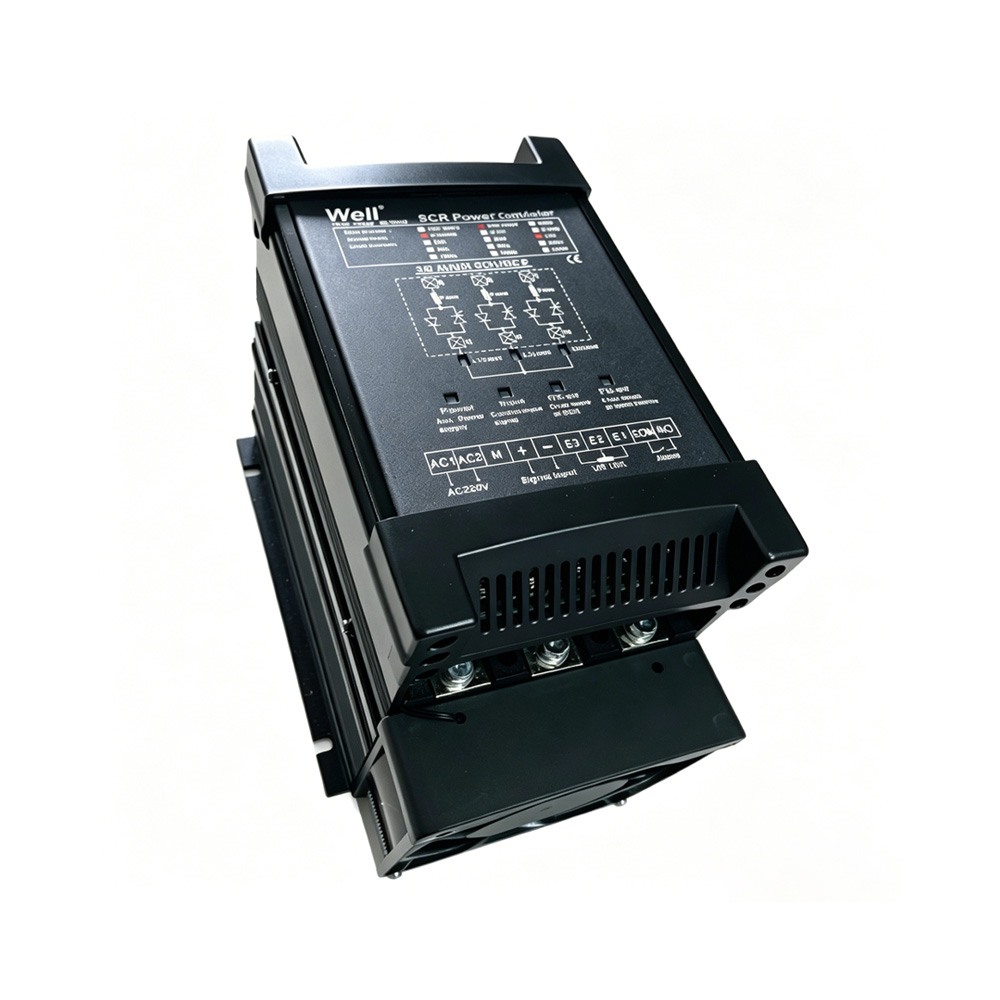

W5 Series Power Regulator
Product Features
- Supports analog control signals including 4~20mA, 1~5V, 2~10V, 0~20mA, 0~5V, 0~10V, contact switch signals and manual potentiometer.
- Equipped with linear limit function for input signal potentiometer.
- High-temperature resistant LED indicators display input status, running status, over-temperature protection and phase loss protection.
- Built-in high-speed fuse to protect load safety.
- Full digital control, hardware filtering and software filtering ensure stable control performance.
- Exquisite appearance and compact size save cabinet installation space.
- Photoelectric isolation is adopted for both input and output interfaces with strong anti-interference capability.
- Exquisite appearance and compact size save cabinet installation space.
- Original Load Analog Indicator Light
It features a unique load analog indicator light that intuitively reflects the load current magnitude, output balance status and power phase loss condition. If the high-speed fuse blows, users can directly judge the fault by checking whether the indicator light is on. - Preset Optimal Soft Start & Soft Shutdown Time
Based on field tests with various loads, the unit is preset with an optimal buffer time of 5 seconds for soft start and 5 seconds for soft shutdown, which effectively protects the SCR module and loads. - Comprehensive Protection & Alarm Functions
Standard equipped with power phase loss alarm, SCR over-temperature alarm and high-speed fuse blow indication, with an optional set of alarm contact output available.
Technical Specification Sheet
| Item | Parameters |
| Control Signal Input | Current Input: 4~20mA, 0~20mA (Input Impedance: 250 Ω)Voltage Input: 1~5V, 0~5V, 0~10V, 2~10VManual Input: 10K Ω PotentiometerContact Signal Input |
| Rated Load Voltage Range | 100~240: 100~240VAC 50/60HZ330~440: 330~440VAC 50/60HZ480V: 480VAC 50/60HZ |
| Short Circuit & Overcurrent Protection System | Protection Action: The high-speed fuse blows when current exceeds 130~150% of rated currentAction Time: <20ms |
| Heatsink Over-temperature Protection System | Protection Action: Output cuts off and LED indicator lights up when heatsink temperature exceeds 75℃Action Time: <20ms |
| Insulation Resistance | Min. 20MΩ at 500V DC |
| Dielectric Strength | 2000V AC for 1 minute (220V model)2500V AC for 1 minute (380V model) |
| Material | Aluminum Alloy / Plastic |
| Operating Environment | Ambient Temperature Range: -10~50℃Ambient Humidity: ≤90%RH (Non-condensing) |
| Model No. | Current | 220V Power Supply Load Power (KW) | 380V Power Supply Load Power (KW) | Overall Length (MM) | Overall Width (MM) | Overall Height (MM) | Mounting Length (MM) | Mounting Width (MM) | Weight (KG) | Screw Spec | Locking Torque | Cooling Method |
| W5-1-4-030-PT | 30A | 5.5 | 9 | 160 | 113 | 160 | 130 | 105 | 1.8 | M6 | 40kgfcm | Natural Cooling |
| W5-1-4-040-PT | 40A | 6.5 | 10 | 160 | 113 | 160 | 130 | 105 | 1.8 | M6 | 40kgfcm | Natural Cooling |
| W5-1-4-050-PT | 50A | 8.5 | 12 | 225 | 113 | 170 | 130 | 105 | 2.3 | M6 | 50kgfcm | Forced Air Cooling |
| W5-1-4-060-PT | 60A | 10 | 15 | 225 | 113 | 170 | 130 | 105 | 2.3 | M6 | 50kgfcm | Forced Air Cooling |
| W5-1-4-075-PT | 75A | 14 | 23 | 225 | 113 | 170 | 130 | 105 | 2.5 | M6 | 70kgfcm | Forced Air Cooling |
| W5-1-4-080-PT | 80A | 15 | 25 | 225 | 113 | 170 | 130 | 105 | 2.5 | M6 | 75kgfcm | Forced Air Cooling |
| W5-1-4-090-PT | 90A | 16.5 | 27 | 225 | 113 | 170 | 130 | 105 | 2.5 | M6 | 75kgfcm | Forced Air Cooling |
| W5-1-4-100-PT | 100A | 18 | 30 | 225 | 113 | 170 | 130 | 105 | 2.5 | M6 | 85kgfcm | Forced Air Cooling |
| W5-1-4-125-PT | 125A | 22 | 36 | 270 | 113 | 170 | 160 | 105 | 2.8 | M6 | 95kgfcm | Forced Air Cooling |
| W5-1-4-150-PT | 150A | 26 | 44 | 270 | 113 | 170 | 160 | 105 | 3.5 | M6 | 170kgfcm | Forced Air Cooling |
| W5-1-4-175-PT | 175A | 30 | 50 | 270 | 113 | 170 | 160 | 105 | 3.5 | M6 | 200kgfcm | Forced Air Cooling |
| W5-1-4-200-PT | 200A | 35 | 60 | 270 | 113 | 170 | 160 | 105 | 3.5 | M6 | 220kgfcm | Forced Air Cooling |
| W5-1-4-225-PT | 225A | 39 | 65 | 340 | 140 | 195 | 252 | 135 | 3.5 | M6 | 250kgfcm | Forced Air Cooling |
| W5-1-4-250-PT | 250A | 42 | 70 | 340 | 140 | 195 | 252 | 135 | 3.5 | M6 | 250kgfcm | Forced Air Cooling |
| W5-1-4-300-PT | 300A | 52 | 86 | 325 | 164 | 208 | 316 | 104 | 4.5 | M8 | 250kgfcm | Forced Air Cooling |
| W5-1-4-400-PT | 400A | 70 | 120 | 325 | 164 | 208 | 316 | 104 | 5.5 | M8 | 250kgfcm | Forced Air Cooling |
| W5-4-030-PT | 30A | 9.5 | 16.5 | 160 | 110 | 160 | 130 | 105 | 1.8 | M6 | 40kgfcm | Natural Cooling |
| W5-4-040-PT | 40A | 12.5 | 20 | 200 | 110 | 160 | 130 | 105 | 2.3 | M6 | 40kgfcm | Natural Cooling |
| W5-4-050-PT | 50A | 15.5 | 27 | 250 | 140 | 195 | 162 | 135 | 3.5 | M6 | 50kgfcm | Forced Air Cooling |
| W5-4-060-PT | 60A | 19 | 33 | 250 | 140 | 195 | 162 | 135 | 3.5 | M6 | 50kgfcm | Forced Air Cooling |
| W5-4-075-PT | 75A | 23.5 | 41 | 250 | 140 | 195 | 162 | 135 | 3.9 | M6 | 70kgfcm | Forced Air Cooling |
| W5-4-080-PT | 80A | 25.5 | 44 | 250 | 140 | 195 | 162 | 135 | 3.9 | M6 | 75kgfcm | Forced Air Cooling |
| W5-4-090-PT | 90A | 28.5 | 49 | 250 | 140 | 195 | 162 | 135 | 3.9 | M6 | 85kgfcm | Forced Air Cooling |
| W5-4-100-PT | 100A | 32 | 55 | 250 | 140 | 205 | 162 | 135 | 3.9 | M6 | 85kgfcm | Forced Air Cooling |
| W5-4-125-PT | 125A | 40 | 68.5 | 290 | 140 | 205 | 202 | 135 | 5.1 | M8 | 95kgfcm | Forced Air Cooling |
| W5-4-150-PT | 150A | 45 | 75 | 340 | 140 | 205 | 252 | 135 | 5.7 | M8 | 170kgfcm | Forced Air Cooling |
| W5-4-175-PT | 175A | 53 | 88 | 340 | 140 | 205 | 252 | 135 | 5.7 | M8 | 200kgfcm | Forced Air Cooling |
| W5-4-200-PT | 200A | 60 | 100 | 379 | 185 | 225 | 272 | 170 | 13 | M8 | 220kgfcm | Forced Air Cooling |
| W5-4-225-PT | 225A | 68 | 113 | 420 | 244 | 236 | 401 | 160 | 13 | M10 | 250kgfcm | Forced Air Cooling |
| W5-4-250-PT | 250A | 80 | 130 | 420 | 244 | 236 | 401 | 160 | 15 | M10 | 250kgfcm | Forced Air Cooling |
| W5-4-300-PT | 300A | 89 | 160 | 435 | 263 | 248 | 416 | 160 | 18 | M10 | 250kgfcm | Forced Air Cooling |
| W5-4-400-PT | 400A | 120 | 220 | 435 | 263 | 248 | 416 | 160 | 22 | M12 | 250kgfcm | Forced Air Cooling |
*Note: All specifications are for reference only; actual product shall prevail.
Single phase thyristor power regulators support resistive and inductive loads. Some applications thyristor power regulator widely be used:
1.Holding Furnaces
2.Silicon Carbide/MoSi2 heating elements furnaces
3.Aluminium Melting Furnaces
4.Air Handling Units
5.Dehumidifiers
6.Boilers
7.Multi-zone heating for manifold moulds
8.Hot Air Generators and Hot Air Dryers
9.Paper and Printing Drying Ovens
10.Microwave dryers
11.Multi-zone Drying and Curing Ovens
12.Heat Transfer Printing Machines
13.Preheating tunnel ovens made using IR heaters
14.Plastic Pipes and Sheets extrusion
15.Metal sheets welding systems
