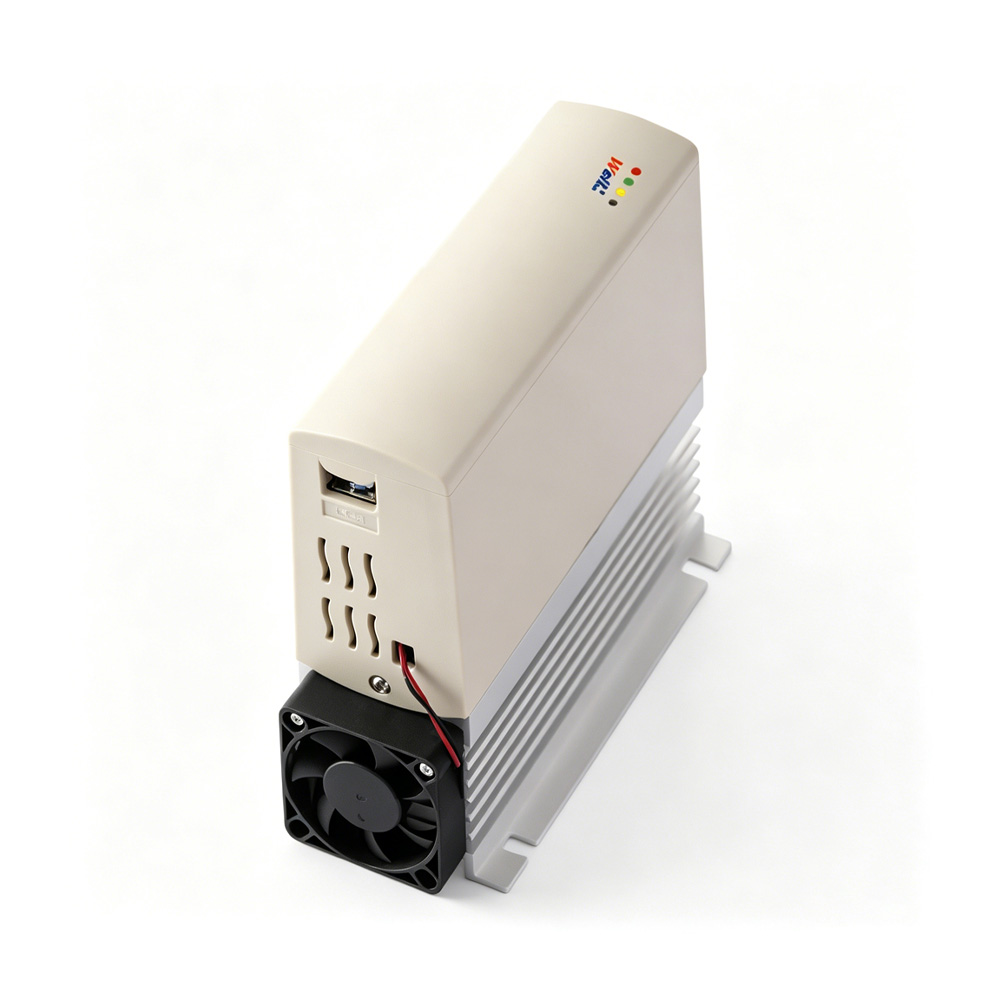

W2 Series Single-Phase Simple Power Regulator
Product Features
- Independent mold opening, integrated molding
- Flip cover design with built-in fuse, safe and reliable
- Compact design, saves control cabinet space
- Diverse input types, supports manual and automatic control
| Model No. | Current | Load Power (KW) | Overall Dimensions (MM) | Mounting Dimensions | Weight (KG) | Screw & Locking Torque | Cooling Method | |||||
| 220V Power Supply | 380V Power Supply | Length | Width | Height | Length | Width | Screw Spec | Torque | ||||
| W2-1-4-030-PT | 30A | 5.0 | 9.0 | 157 | 73 | 147 | 123 | 66 | 1.5 | M6 | 40kgfcm | Natural Cooling |
| W2-1-4-040-PT | 40A | 6.5 | 10 | 157 | 73 | 147 | 123 | 66 | 1.5 | M6 | 40kgfcm | Natural Cooling |
| W2-1-4-050-PT | 50A | 8.5 | 12 | 170 | 73 | 147 | 123 | 66 | 1.6 | M6 | 40kgfcm | Forced Air Cooling |
| W2-1-4-060-PT | 60A | 10 | 15 | 170 | 73 | 147 | 123 | 66 | 1.8 | M6 | 40kgfcm | Forced Air Cooling |
| W2-1-4-075-PT | 75A | 14 | 23 | 170 | 73 | 147 | 123 | 66 | 1.8 | M6 | 40kgfcm | Forced Air Cooling |
| W2-1-4-080-PT | 80A | 15 | 25 | 170 | 73 | 147 | 123 | 66 | 1.8 | M6 | 40kgfcm | Forced Air Cooling |
| W2-1-4-090-PT | 90A | 16 | 27 | 170 | 73 | 147 | 123 | 66 | 1.8 | M6 | 40kgfcm | Forced Air Cooling |
| W2-1-4-100-PT | 100A | 18 | 30 | 170 | 73 | 147 | 123 | 66 | 1.8 | M6 | 40kgfcm | Forced Air Cooling |
Some applications thyristor power regulator widely be used:
1.Holding Furnaces
2.Silicon Carbide/MoSi2 heating elements furnaces
3.Aluminium Melting Furnaces
4.Air Handling Units
5.Dehumidifiers
6.Boilers
7.Multi-zone heating for manifold moulds
8.Hot Air Generators and Hot Air Dryers
9.Paper and Printing Drying Ovens
10.Microwave dryers
11.Multi-zone Drying and Curing Ovens
12.Heat Transfer Printing Machines
13.Preheating tunnel ovens made using IR heaters
14.Plastic Pipes and Sheets extrusion
15.Metal sheets welding systems
1. ODM/OEM service is offered.
2. Quick order confirmation.
3. Fast delivery time.
4. Convenient payment term.
At present, the company is vigorously expanding overseas markets and global layout. We are committed to becoming one of the top ten export enterprises in China’s electrical automatic product, serving the world with high-quality products and achieving a win-win situation with more customers.
