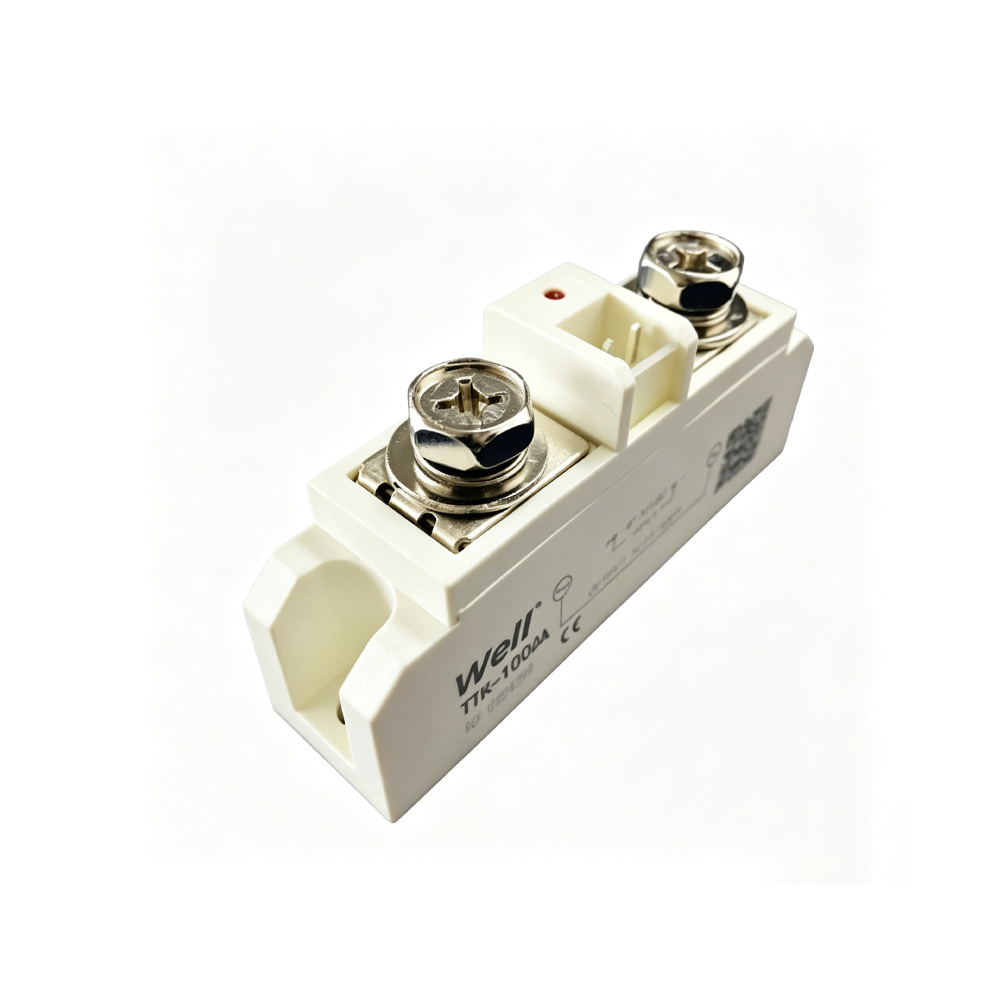

TTR Series Single Phase Solid State Relays And Industrial Modular Solid State Relays
Description
Product Features

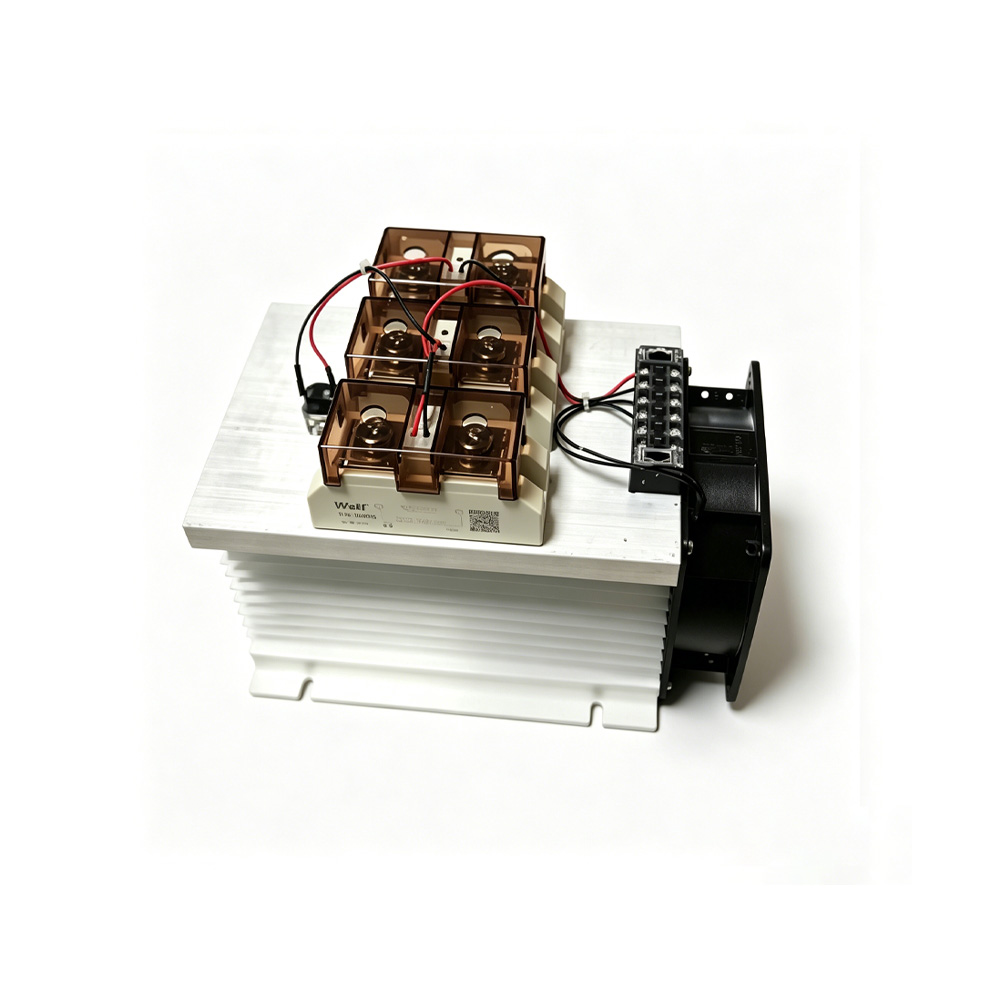

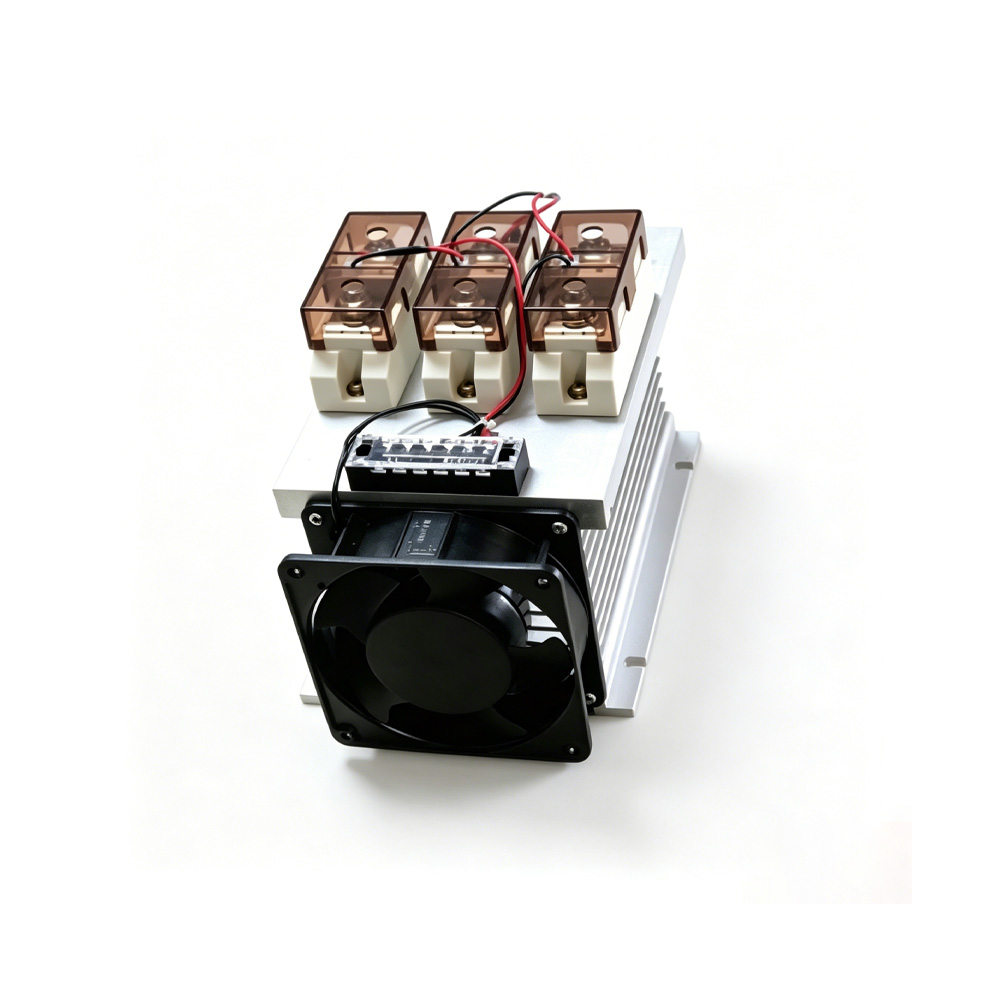

- Stable performance and strong current carrying capacity; heat sinks can be optionally equipped for customers.
- Technical types include DC to AC control, AC to AC control, and customized 4~20mA voltage regulation models.
- The product is applicable to scenarios for controlling three-phase resistive loads, three-phase inductive loads and other DC or AC loads.
Specification And Model
| Model No. | TTR-60DA | TTR-80DA | TTR-100DA | TTR-120DA | TTR-150DA | TTR-200DA | TTR-300DA | TTR-400DA |
Fault Handling
| Parameter | Specification |
| Control Power Supply | DC 4~32V |
| Control Power Supply Current | 15~50mA |
| Minimum Pulse Width of Control Power Supply Current | 500μs |
| Repetitive Peak Off-State Current | 0.5~2mA |
| Peak On-State Voltage | 1.5V Max |
| Holding Current | 20~70mA |
| dv/dt | 500V/μs |
| Zero-Crossing Voltage | ±15V (PEAK) |
| Switching Current | 20μs (max) |
| Insulation Resistance | 1000MΩ / 500Vdc |
| Insulation Voltage | >2000V |
| Operation Status Indicator | High Brightness Red LED |
| Protection Level | IP67 |
