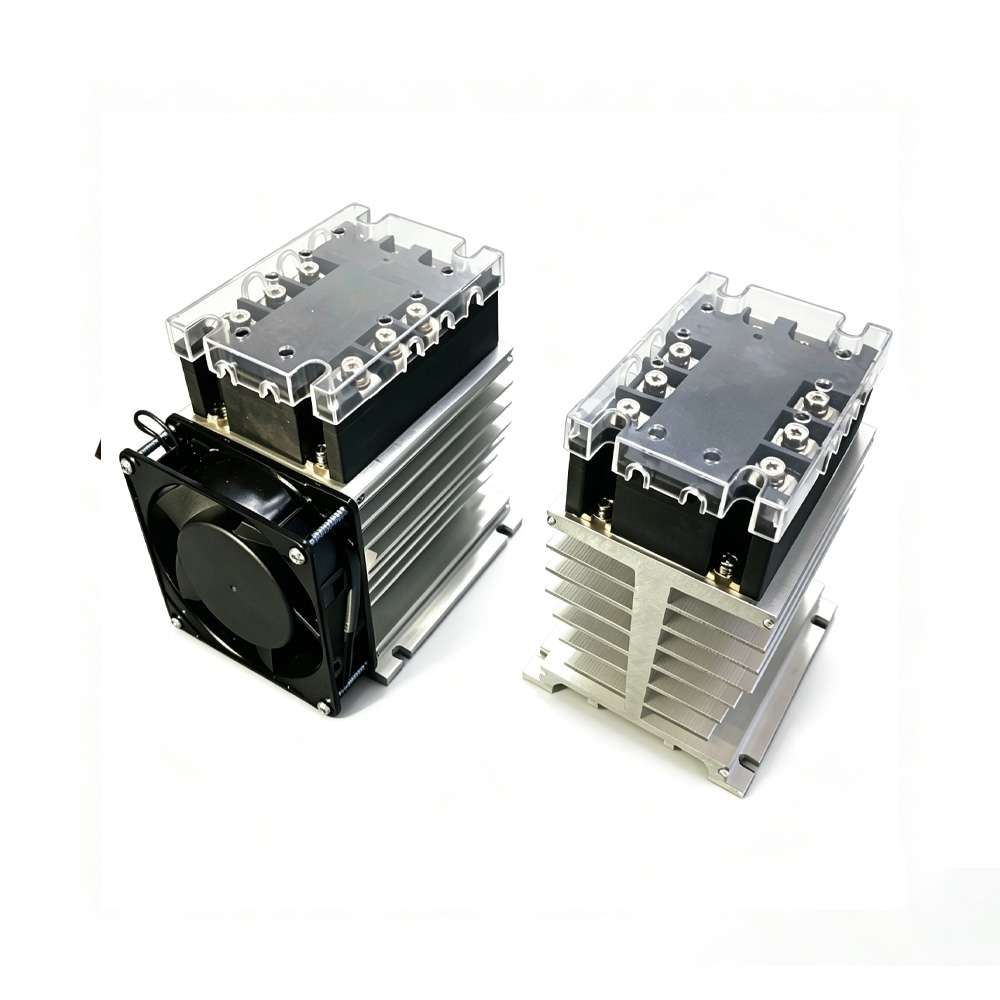

TSR3 Series Three-Phase Solid State Relay
Description
Product Features
- Unique aluminum plate coating process / Thyristor module welding process
| Parameter | Specification |
| Model No. | TSR3-25DA / TSR3-40DA / TSR3-60DA / TSR3-80DA / TSR3-100DA / TSR3-120DA / TSR3-150DA |
| Control Power Supply | DC 4~32V |
| Control Power Supply Current | 15~50mA |
| Minimum Pulse Width of Control Power Supply | 500μs |
| Repetitive Peak Off-State Current | 0.5mA |
| Peak On-State Voltage | 1.5V max |
| Holding Current | 20~70mA |
| dv/dt | 500V/μs |
| Zero-Crossing Voltage | ±15V (PEAK) |
| Switching Current | 20μs (max) |
| Insulation Resistance | 1000MΩ / 500Vdc |
| Insulation Voltage | >2000V |
| Operation Status Indicator | High Brightness Red LED |
| Protection Level | IP67 |
