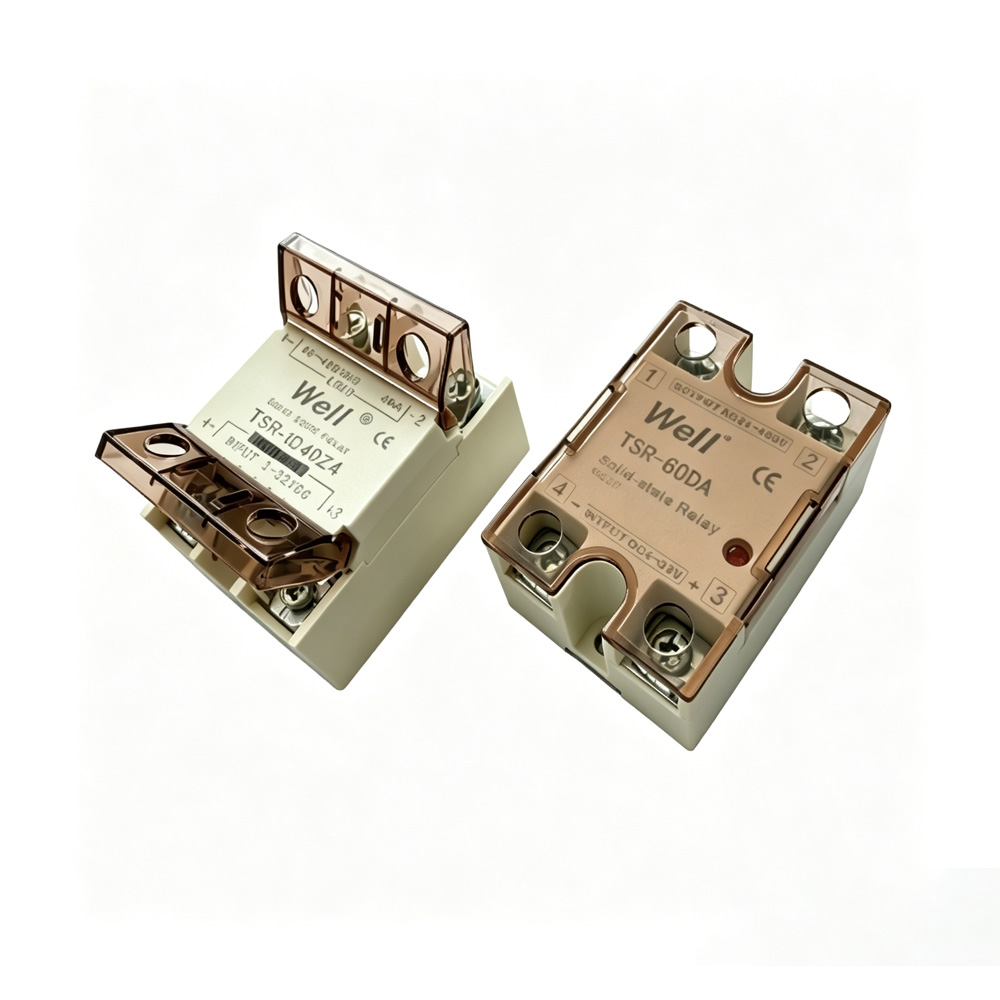

TSR High-End Single-Phase Solid-State Relay
Description
Product Features
- Adopts reliable CPU from ATMEL (USA) and SMT surface mount technology.
- Equipped with standard functions including constant current, constant voltage and constant power.
- The zero-crossing mode is applicable to inductive loads to reduce harmonic interference on the power grid. It supports automatic switching between phase-shift and zero-crossing modes to protect resistive loads at low temperature stages.
- Comes with LED human-machine interface for human-machine interaction, as well as abundant programmable AI/DI/DO interfaces.
- Standard RS-485 interface is equipped, supporting MODBUS TCP, temperature control modules and other peripheral devices.
Specification And Model
| Model Type | 1 | 2 | 3 | 4 | 5 |
| DC Input Model | TSR1D25Z4 | TSR1D40Z4 | TSR1D60Z4 | TSR1D80Z4 | TSR1D100Z4 |
| AC Input Model | TSR1A25Z4 | TSR1A40Z4 | TSR1A60Z4 | TSR1A80Z4 | TSR1A100Z4 |
Shape And Wiring Diagram
Fault Handling
| Category | Parameter | DC Specification | AC Specification |
| Input Specifications | Control Voltage Range | 3-32VDC | 90-280V |
| Input Specifications | Maximum Input Current | 15mA | 12mA |
| Input Specifications | Guaranteed Turn-on Voltage | 3.5VDC | 40VAC |
| Input Specifications | Guaranteed Turn-off Voltage | 1.5VDC | 30VAC |
| Output Specifications | Output Voltage Range | 40-480VAC | 40-480VAC |
| Output Specifications | Maximum Load Current | 25A / 40A / 60A / 80A / 100A | 25A / 40A / 60A / 80A / 100A |
| Output Specifications | Peak Voltage | 800V | 800V |
| Output Specifications | Leakage Current (OFF State) | 8mArms | 8mArms |
| Output Specifications | Saturation Voltage Drop (ON State) | 1.5V | 1.5V |
| Other Characteristics | Dimensions | 624529 mm | 624529 mm |
| Other Characteristics | Weight | 105g | 105g |
| Other Characteristics | Insulation Resistance | min 50MΩ | min 50MΩ |
| Other Characteristics | Withstand Voltage | 2500Vrms | 2500Vrms |
| Other Characteristics | Operating Temperature | -20~80℃ | -20~80℃ |
