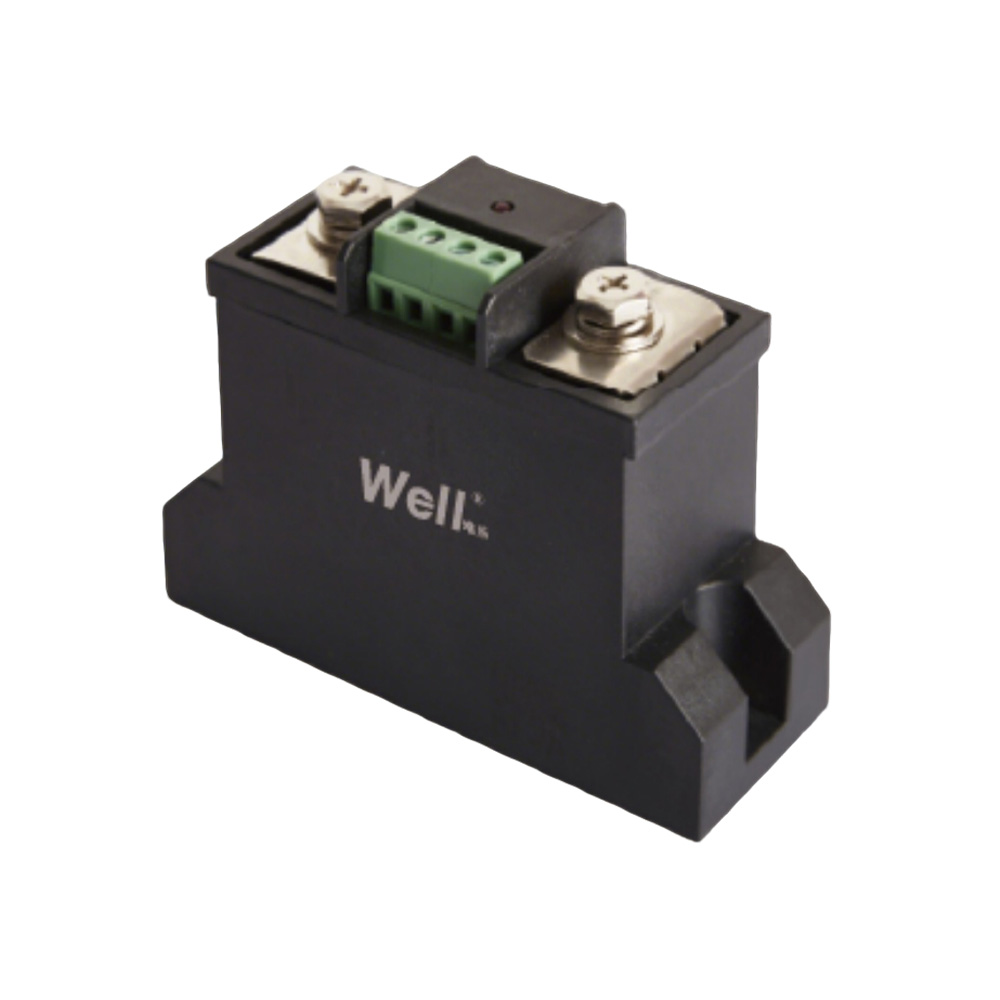

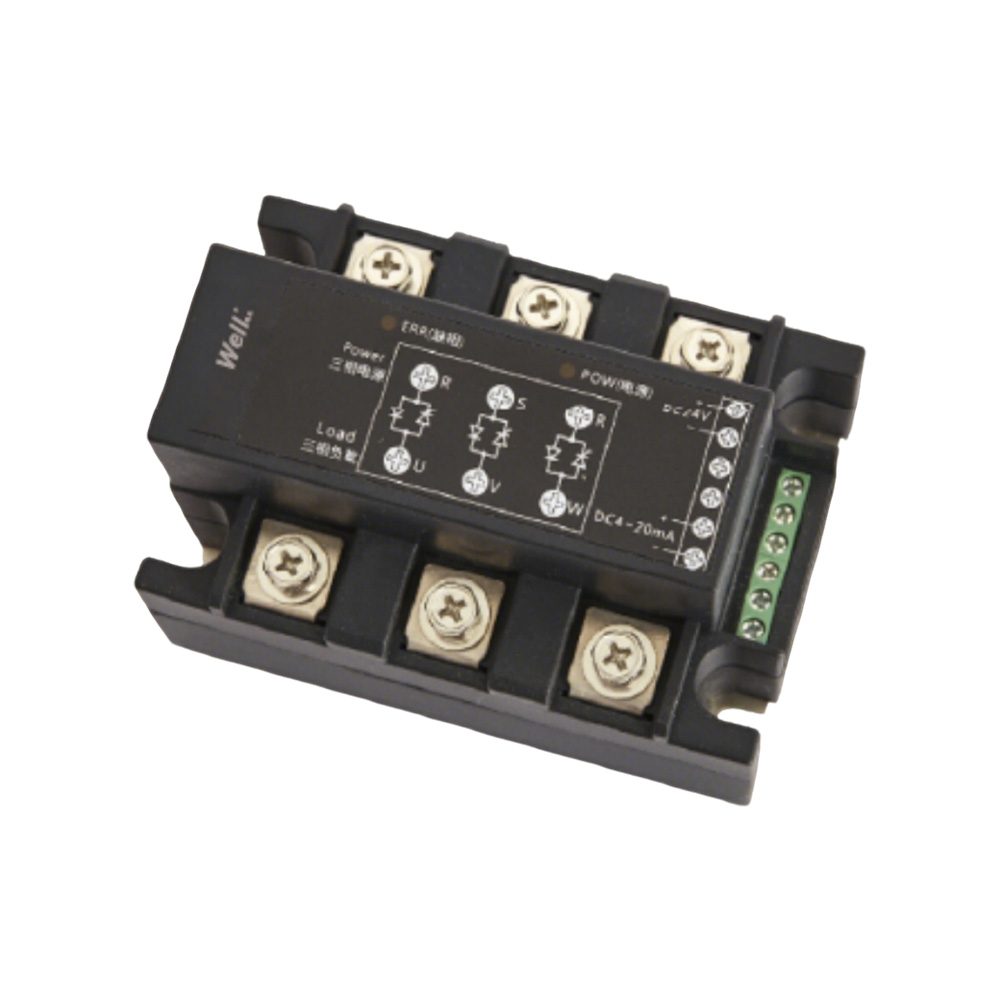

TSA Series Single-Phase Linear Modules / TSA3 Series Three-Phase Linear Modules
Chip-Controlled Linear Output / SCR Module Welding Process
- All series adopt brand-new molds with 220V power isolation, compatible with the 4-20mA control signals of most mainstream controllers on the market.
- Built-in single-chip microcomputer for intelligent control. Phase-shift output is set as default, and distributive zero-crossing control is optional, featuring high linearity.
- The heat-conducting base plate is coated with a special plating layer. All models adopt solderable silicon chip welding, leaving no screw holes on the base plate for a neat and elegant appearance.
- The full series supports 24VDC power supply and 4~20mA DC control signals. Voltage regulation is realized via single-chip microcomputer control with excellent linearity, covering load current specifications ranging from 25A to 200A.
| Model | TSA-25CA
TSA-40CA |
TSA-60CA
TSA-80CA |
TSA-100CA
TSA-120CA |
TSA-150CA
TSA-200CA |
Model | TSA3-25CA
TSA3-40CA |
TSA3-60CA
TSA3-80CA |
TSA3-100CA
TSA3-120CA |
TSA3-150CA
TSA3-200CA |
|---|---|---|---|---|---|---|---|---|---|
| Control Power Supply | AC220V | Control Power Supply | DC24V | ||||||
| Control Power Supply Impedance | ≥500 Ω | Control Power Supply Current | 15~50mA | ||||||
| Minimum Pulse Width of Control Power Supply | 500us | Minimum Pulse Width of Control Power Supply | 500us | ||||||
| Repetitive Peak Off-state Current | 0.5mA | Repetitive Peak Off-state Current | 0.5mA | ||||||
| Peak On-state Voltage | 1.5Vmax | Peak On-state Voltage | 1.5Vmax | ||||||
| Holding Current | 20~70mA | Holding Current | 20~70mA | ||||||
| dv/dt | 500V/us | dv/dt | 500V/us | ||||||
| Zero-crossing Voltage | ±15V(PEAK) | Zero-crossing Voltage | ±15V(PEAK) | ||||||
| Switching Current | 20us(max) | Switching Current | 20us(max) | ||||||
| Insulation Resistance | 1000MΩ/500Vdc | Insulation Resistance | 1000MΩ/500Vdc | ||||||
| Insulation Voltage | >2000V | Insulation Voltage | >2000V | ||||||
| Operation Status | High-brightness Red LED | Operation Status | High-brightness Red LED | ||||||
| Protection Level | IP67 | Protection Level | IP67 |
Some applications thyristor power regulator widely be used:
1.Holding Furnaces
2.Silicon Carbide/MoSi2 heating elements furnaces
3.Aluminium Melting Furnaces
4.Air Handling Units
5.Dehumidifiers
6.Boilers
7.Multi-zone heating for manifold moulds
8.Hot Air Generators and Hot Air Dryers
9.Paper and Printing Drying Ovens
10.Microwave dryers
11.Multi-zone Drying and Curing Ovens
12.Heat Transfer Printing Machines
13.Preheating tunnel ovens made using IR heaters
14.Plastic Pipes and Sheets extrusion
15.Metal sheets welding systems
1. ODM/OEM service is offered.
2. Quick order confirmation.
3. Fast delivery time.
4. Convenient payment term.
