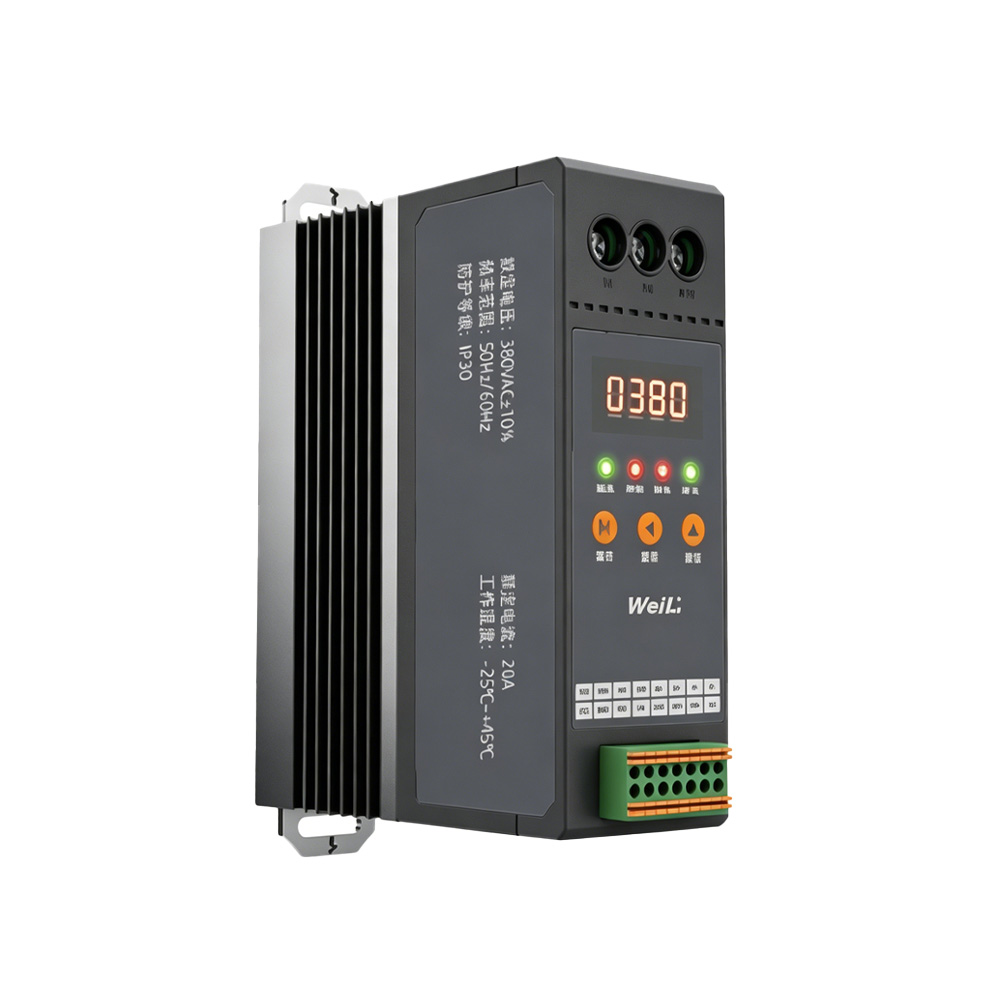

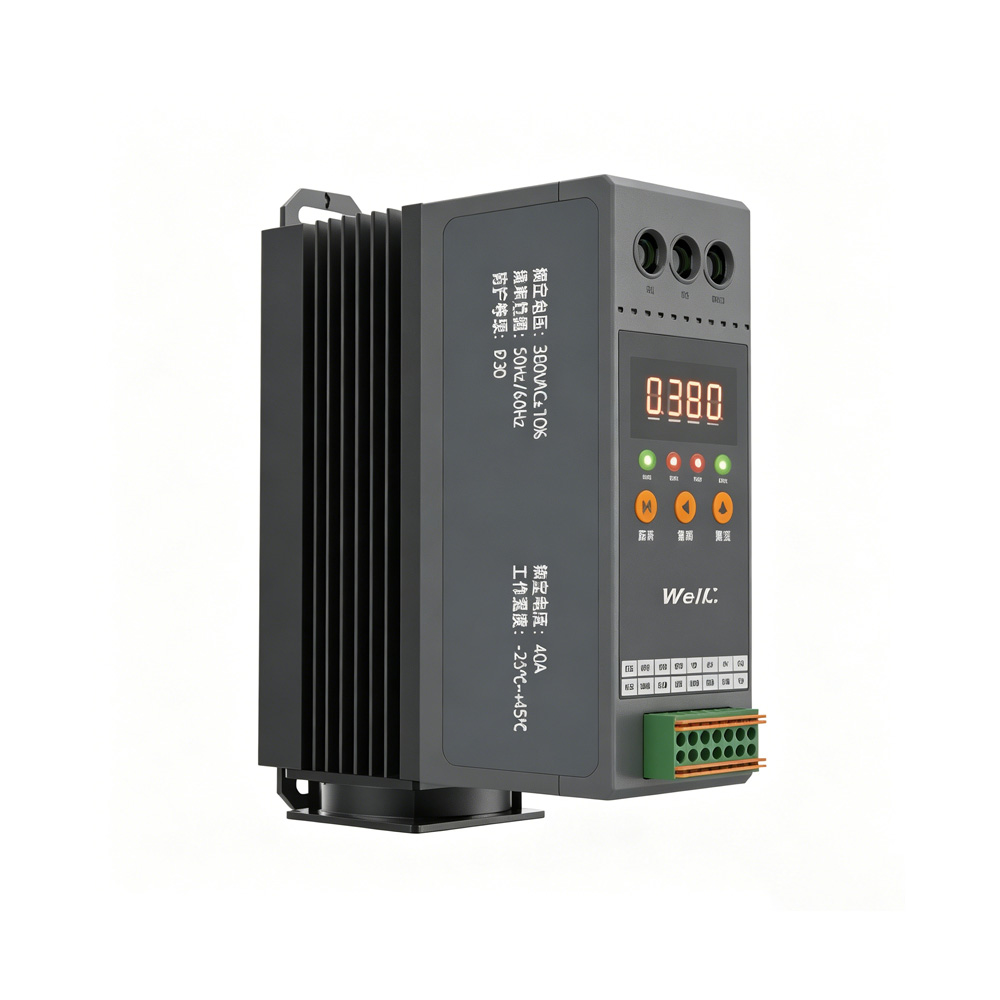

Ts Series Single-Phase Ultra-Thin Power Regulator
Product Features
- Constant Voltage / Constant Current / Constant Power
-
Highly integrated feedback control system with thickness of only 42mm
-
Isolated output voltage and current sampling circuit
-
Built-in RC absorption circuit, supporting DIN rail or screw mounting
-
MODBUS-RTU communication, digital display, parameter adjustment via buttons
-
Phase loss, overvoltage, overcurrent and overheat protection, fault alarm output
Working Parameters
| Item | Parameter |
| Working Power Supply | Voltage: DC24V, Power: ≥3W |
| Control Signal | 0-10V/4-20mA Analog / Potentiometer / Communication Control |
| Main Circuit Input Voltage | AC 220/AC 380V AC |
| Output Current | 20A, 40A |
| Working Mode | Constant Voltage / Constant Current / Constant Power |
| Working Frequency | 50/60HZ Adaptive |
| Output Voltage Asymmetry | <2% |
| Voltage Instability | <0.5% |
| Forward and Reverse Peak Withstand Voltage | ≥1400V |
| di/dt | 100A/μs |
| dv/dt | 500V/μs |
| Item | 20A Series | 40A Series |
| Product Model | TS-1-2-020P, TS-1-4-020P | TS-1-2-040P, TS-1-4-040P |
| Rated Current | 20 A | 40 A |
| Rated Power | 7.6 KW | 15.5 KW |
| Installation Dimension Notes |  |
 |
| Overall Dimensions (Length × Width × Height) | 151mm × 42mm × 109mm | 162mm × 42mm × 109mm |
Single phase thyristor power regulators support resistive and inductive loads. Some applications thyristor power regulator widely be used:
1.Holding Furnaces
2.Silicon Carbide/MoSi2 heating elements furnaces
3.Aluminium Melting Furnaces
4.Air Handling Units
5.Dehumidifiers
6.Boilers
7.Multi-zone heating for manifold moulds
8.Hot Air Generators and Hot Air Dryers
9.Paper and Printing Drying Ovens
10.Microwave dryers
11.Multi-zone Drying and Curing Ovens
12.Heat Transfer Printing Machines
13.Preheating tunnel ovens made using IR heaters
14.Plastic Pipes and Sheets extrusion
15.Metal sheets welding systems
1. ODM/OEM service is offered.
2. Quick order confirmation.
3. Fast delivery time.
4. Convenient payment term.
At present, the company is vigorously expanding overseas markets and global layout. We are committed to becoming one of the top ten export enterprises in China’s electrical automatic product, serving the world with high-quality products and achieving a win-win situation with more customers.
