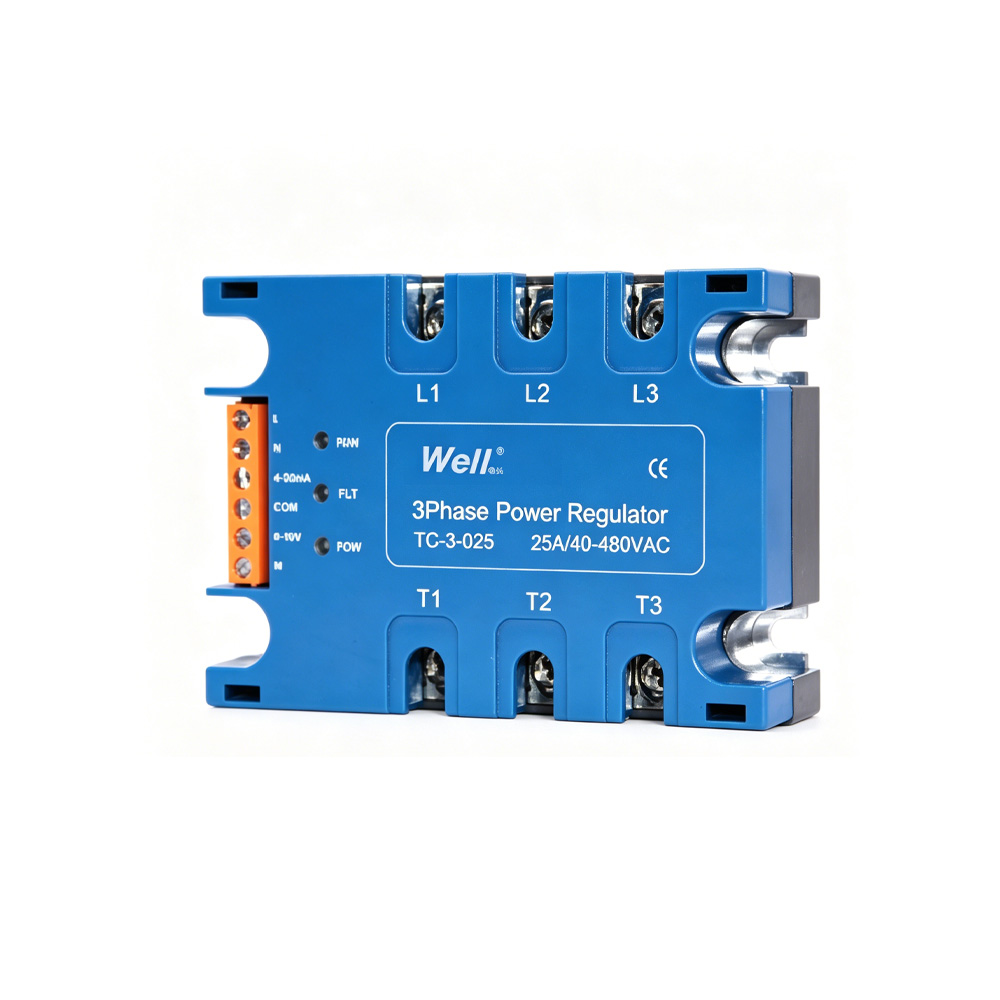

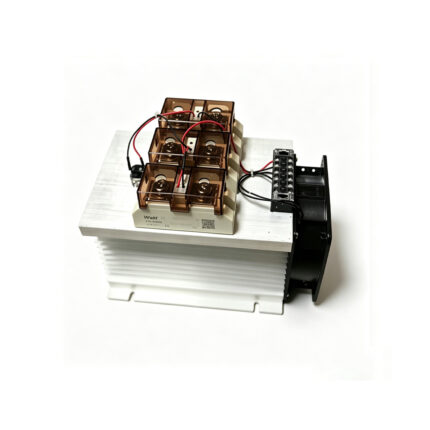

TC3 Series Three-Phase Digital Voltage Regulation Module
Description
Product Features
- Built-in CPU corrects linear output ranging from 0 to 380VAC.
- Supports 4-20mA, 0-10V and potentiometer control signals.
- Equipped with LED indicator lights for convenient operating status monitoring.
- Automatically identifies grid voltage and performs soft start.
- Integrated internal NTC temperature measurement protection and three-phase phase loss protection.
- Adopts imported silicon chips with DBC vacuum soldering technology.
- Controlled by digital signals to deliver linear output voltage and balanced three-phase power.
- Suitable for voltage regulation and heating applications with resistive loads and transformer loads.
- Stepless voltage regulation generates no current surge and achieves energy-saving performance.
- Excellent anti-interference capability, applicable to various complex industrial environments.
Technical Specification Sheet
| Item | TC3-015 | TC3-025 | TC3-045 | TC3-065 | TC3-080 | TC3-100 | TC3-120 |
| Model | TC3-015 | TC3-025 | TC3-045 | TC3-065 | TC3-080 | TC3-100 | TC3-120 |
| Load Power | 4KW | 6KW | 10KW | 18KW | 20KW | 25KW | 30KW |
| Output Voltage | 0~380VAC | 0~380VAC | 0~380VAC | 0~380VAC | 0~380VAC | 0~380VAC | 0~380VAC |
| Input Voltage | 220/380V±10% | 220/380V±10% | 220/380V±10% | 220/380V±10% | 220/380V±10% | 220/380V±10% | 220/380V±10% |
| Auxiliary Power Supply | 220VAC±10%, Max 5W | 220VAC±10%, Max 5W | 220VAC±10%, Max 5W | 220VAC±10%, Max 5W | 220VAC±10%, Max 5W | 220VAC±10%, Max 5W | 220VAC±10%, Max 5W |
| Analog Input 1 | 4-20mA DC, Operates above 4.5mA | 4-20mA DC, Operates above 4.5mA | 4-20mA DC, Operates above 4.5mA | 4-20mA DC, Operates above 4.5mA | 4-20mA DC, Operates above 4.5mA | 4-20mA DC, Operates above 4.5mA | 4-20mA DC, Operates above 4.5mA |
| Analog Input 2 | 0-10V DC, Operates above 0.5V | 0-10V DC, Operates above 0.5V | 0-10V DC, Operates above 0.5V | 0-10V DC, Operates above 0.5V | 0-10V DC, Operates above 0.5V | 0-10V DC, Operates above 0.5V | 0-10V DC, Operates above 0.5V |
| Control Mode | Phase-shift Voltage Regulation | Phase-shift Voltage Regulation | Phase-shift Voltage Regulation | Phase-shift Voltage Regulation | Phase-shift Voltage Regulation | Phase-shift Voltage Regulation | Phase-shift Voltage Regulation |
| Load Type | Single-phase Load | Single-phase Load | Single-phase Load | Single-phase Load | Single-phase Load | Single-phase Load | Single-phase Load |
| Load Characteristic | Resistor, Transformer, Heater | Resistor, Transformer, Heater | Resistor, Transformer, Heater | Resistor, Transformer, Heater | Resistor, Transformer, Heater | Resistor, Transformer, Heater | Resistor, Transformer, Heater |
| Mounting Method | Installed on aluminum heat sink with forced air cooling | Installed on aluminum heat sink with forced air cooling | Installed on aluminum heat sink with forced air cooling | Installed on aluminum heat sink with forced air cooling | Installed on aluminum heat sink with forced air cooling | Installed on aluminum heat sink with forced air cooling | Installed on aluminum heat sink with forced air cooling |
| Insulation | Isolated, 3000VAC from input to output | Isolated, 3000VAC from input to output | Isolated, 3000VAC from input to output | Isolated, 3000VAC from input to output | Isolated, 3000VAC from input to output | Isolated, 3000VAC from input to output | Isolated, 3000VAC from input to output |
| Operating Temperature | -20℃~65℃ | -20℃~65℃ | -20℃~65℃ | -20℃~65℃ | -20℃~65℃ | -20℃~65℃ | -20℃~65℃ |
| Dimension | L105W75H35 (mm) | L105W75H35 (mm) | L105W75H35 (mm) | L105W75H35 (mm) | L105W75H35 (mm) | L105W75H35 (mm) | L105W75H35 (mm) |
| Weight | 0.25KG | 0.25KG | 0.25KG | 0.25KG | 0.25KG | 0.25KG | 0.25KG |
Note: Overall Dimensions (MM); Z1/Z2 refer to housing mounting dimensions
*All specifications above are for reference only; actual specifications shall prevail based on physical products.
| Model No. | Length L | Width W | Height H | Mounting Length Z1 | Mounting Width Z2 | Screw Hole T3 | Weight (KG) |
| TC-3-015 | 105 | 75 | 35 | 92 | 48 | M6 | 0.25 |
| TC-3-025 | 105 | 75 | 35 | 92 | 48 | M6 | 0.25 |
| TC-3-045 | 105 | 75 | 35 | 92 | 48 | M6 | 0.25 |
| TC-3-065 | 105 | 75 | 35 | 92 | 48 | M6 | 0.30 |
| TC-3-080 | 105 | 75 | 35 | 92 | 48 | M6 | 0.30 |
| TC-3-100 | 105 | 75 | 35 | 92 | 48 | M6 | 0.30 |
| TC-3-120 | 105 | 75 | 35 | 92 | 48 | M6 | 0.30 |
